H6 Model

Disconnect the ground cable from the battery.
Remove the cover of the pulley belt.
Remove the V-belts.
Remove the power steering pressure switch connector.
Remove the tensioner adjuster.
Disconnect the pressure hose and suction hose from the oil pump.
CAUTION:
- Do not allow fluid to flow from the hose end and contact the pulley belt.
- To prevent foreign objects from entering the hose, cover the hose openings with a clean cloth.

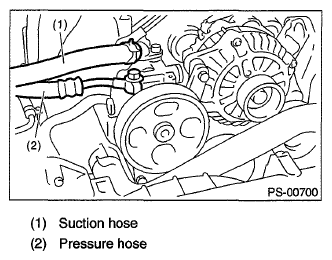

  Fig 1: Identifying Pressure And Suction Hose
  Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which holds the power steering pump bracket.

Fig 2: Locating Power Steering Pump Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Place the oil pump bracket in a vise, and remove the two bolts from the front side of the oil pump.
CAUTION: When securing the oil pump bracket in a vice, hold the oil pump bracket with the least possible force between two pieces of wood.

Fig 3: Locating Oil Pump Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt from the back side of the oil pump.

Fig 4: Locating Bolt On Back Side Of Oil Pump
Courtesy of SUBARU OF AMERICA, INC.
Remove the oil pump from the bracket.
