Section 2 (Engine Intake System (H4DOTC)): Turbocharger: Installation

WARNING: This page is about a different variant/trim than selected.

Install the turbocharger stay.
Tightening torque: T1:33 N.m (3.4 kgf-m, 24.3 ft-lb)

T2:42.5 N.m (4.3 kgf-m, 31.3 ft-lb)

Fig 1: Identifying Cylinder Head And Block
Courtesy of SUBARU OF AMERICA, INC.
Connect the oil outlet hose to the oil outlet pipe.

Fig 2: Identifying Oil Outlet Hose And Oil Outlet Pipe
Courtesy of SUBARU OF AMERICA, INC.
Connect the engine coolant hoses to the water pipe.

Fig 3: Identifying Engine Coolant Hose And Water Pipe
Courtesy of SUBARU OF AMERICA, INC.
Install the oil inlet pipe to turbocharger.
Tightening torque: T1: 5 N.m (0.5 kgf-m, 3.7 ft-lb)

T2: 16 N.m (1.6 kgf-m, 11.8 ft-lb)

T3: 20 N.m (2.0 kgf-m, 14.8 ft-lb)

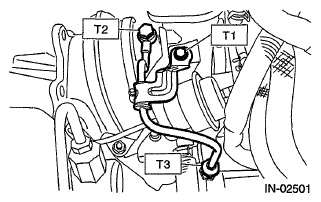

Fig 4: Identifying Oil Inlet Pipe And Turbocharger
Courtesy of SUBARU OF AMERICA, INC.
Connect the air control hose (A) and install the turbocharger to the intake duct.
Tightening torque: 3 N.m (0.3 kgf-m, 2.2 ft-lb)

Fig 5: Locating Air Control Hose
Courtesy of SUBARU OF AMERICA, INC.
Connect the engine coolant hose which is connected to the coolant filler tank.

Fig 6: Locating Engine Coolant Hose
Courtesy of SUBARU OF AMERICA, INC.
Install the joint pipe to turbocharger.
NOTE: Replace the gasket with a new part.

Tightening torque: 42.5 N.m (4.3 kgf-m, 31.3 ft-lb)

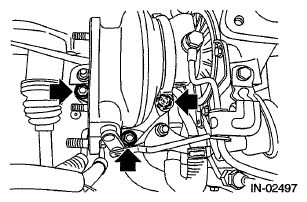

Fig 7: Identifying Turbocharger Joint Pipe And Turbocharger
Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
Install the center exhaust pipe. Ref. to INSTALLATION , Center Exhaust Pipe.
Lower the vehicle.
Install the intercooler. Ref. to INSTALLATION , Intercooler.
Fill engine coolant. Ref. to FILLING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant.
Connect the ground cable to battery.

Fig 8: Connecting/Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Install the collector cover.
