Air Cleaner Element: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground cable from battery.

Fig 1: Connecting/Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake duct. Ref. to REMOVAL , Air Intake Duct.
Disconnect the connector (A) from mass air flow and intake air temperature sensor.
Remove the clip (B) from the air cleaner case.

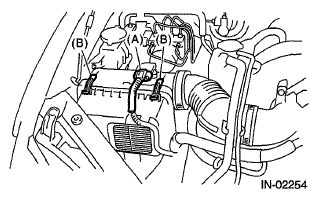

Fig 2: Identifying Clip And Connector
Courtesy of SUBARU OF AMERICA, INC.
Open the air cleaner case, and remove the air cleaner element.

Fig 3: Removing Air Cleaner Element
Courtesy of SUBARU OF AMERICA, INC.
