Air Cleaner Case: Installation

WARNING: This page is about a different variant/trim than selected.

Install in the reverse order of removal.

NOTE: When installing the air cleaner case (rear), align the protrusion of the air cleaner case (rear) to the hole on the air cleaner case (front) to install.

Fig 1: Identifying Air Cleaner Case (Rear)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

Bolt (A) 6 N.m (0.6 kgf-m, 4.4 ft-lb)

Nut (B) 7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Fig 2: Identifying Air Cleaner Case Bolt

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: 2.5 N.m (0.3 kgf-m, 1.8 ft-lb)

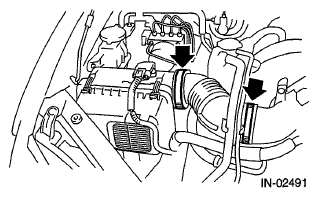

Fig 3: Locating Air Cleaner Case

Courtesy of SUBARU OF AMERICA, INC.
