Engine Mechanical (H4SO)
>>
General Description
>>
Components With Torque Specifications
>>
Engine Mounting
Engine Mounting

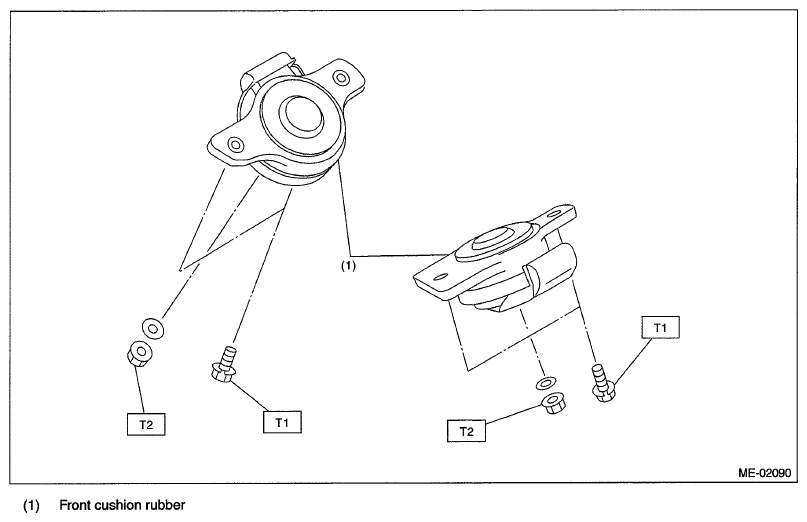

Fig 1: Exploded View Of Engine Mounting
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 35 (3.6, 25.8)
T2: 75 (7.6, 55.3)
Courtesy of SUBARU OF AMERICA, INC.
