Cylinder Block

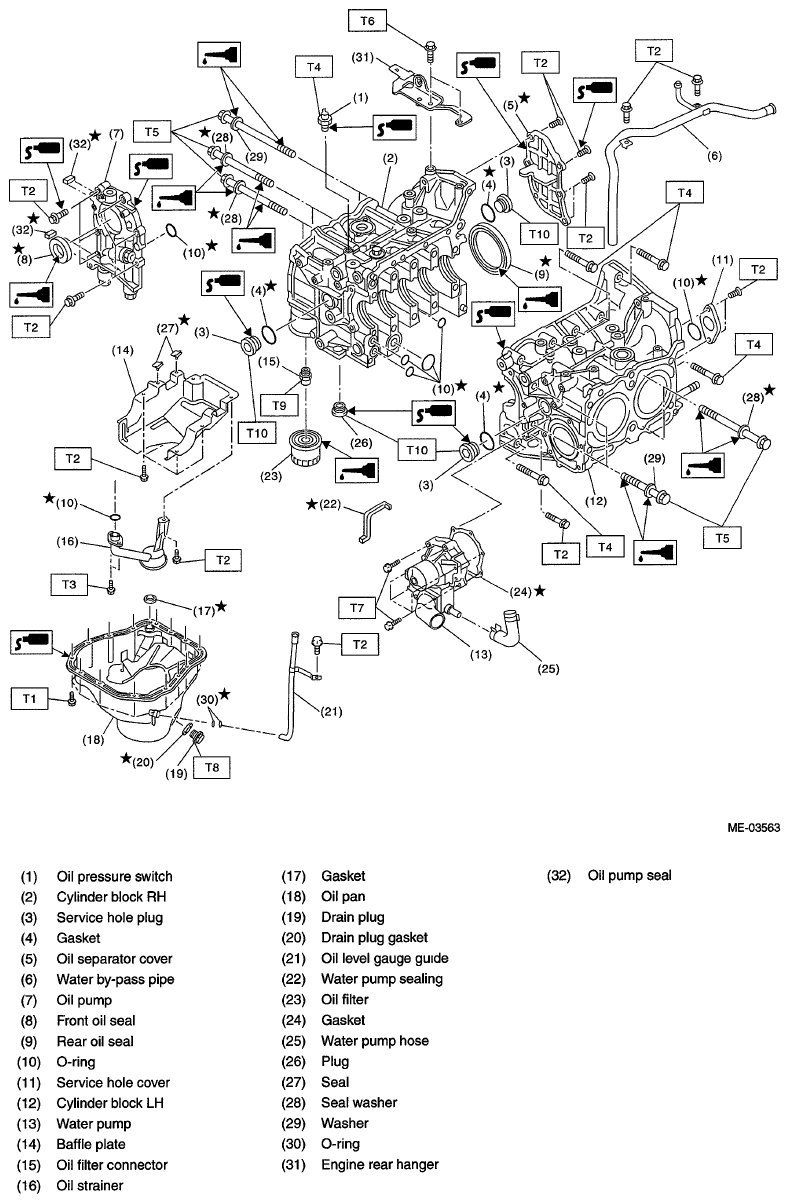

Fig 1: Exploded View Of Cylinder Block

G06334219

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5 (0.5, 3.7)

T2: 6.4 (0.7, 4.7)

T3: 10 (1.0, 7.4)

T4: 25 (2.5, 18.4)

T5: Refer to INSTALLATION , Cylinder Block.

T6: 16 (1.6, 11.8)

T7: First 12 (1.2, 8.9) Second 12 (1.2, 8.9)

T8: 44 (4.5, 32.5)

T9: 45 (4.6, 33.2)

T10: 70 (7.1, 51.6)
