Valve Rocker Assembly: Removal

NOTE: Perform the work with the engine installed to body when replacing a single part. Refer to VALVE CLEARANCE .

Remove the high tension cord.
Disconnect the PCV hose and remove the rocker cover.
Remove the valve rocker assembly.
1. Use the ST to rotate the spring stopper in the direction of the arrow to remove it from adjuster pin.
  ST 18258AA000 SPRING INSTALLER

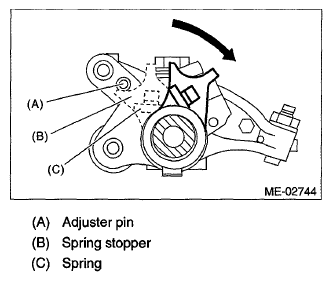

  Fig 1: Rotating Spring Stopper In Direction Of Arrow (1 Of 2)
  Courtesy of SUBARU OF AMERICA, INC.

  Fig 2: Rotating Spring Stopper In Direction Of Arrow (2 Of 2)
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove the bolts (a) through (j) in alphabetical sequence.
  NOTE: Leave two or three threads of bolts (i) and (j) engaged in order to retain the valve rocker assembly.

  Fig 3: Identifying Bolts Removal Sequence
  Courtesy of SUBARU OF AMERICA, INC.
3. Remove the valve rocker assembly.
  NOTE: Set the ST in the position shown in the drawing to remove the intake valve rocker assembly.

  ST 18354AA000 VALVE ROCKER HOLDER

  Fig 4: Setting ST (18354AA000 Valve Rocker Holder)
  Courtesy of SUBARU OF AMERICA, INC.
