Timing Belt

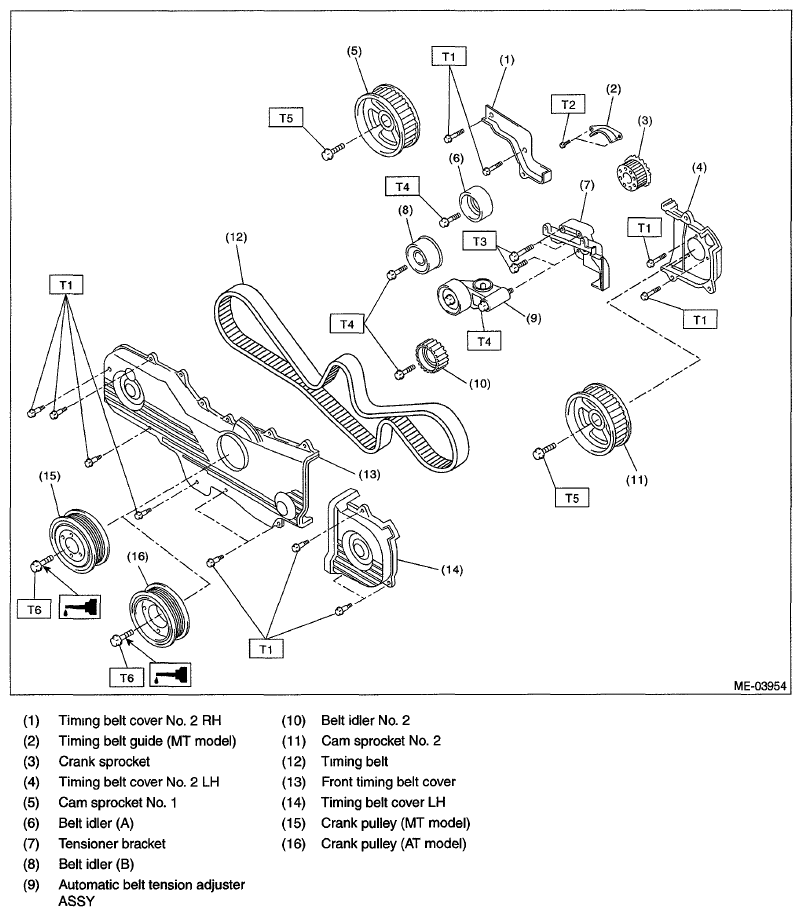

Fig 1: Exploded View Of Timing Belt

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5 (0.5,3.7)

T2: 9.75 (1.0,7.2)

T3: 24.5 (2.5, 18.1)

T4: 39 (4.0,28.8)

T5: 78 (8.0,57.5)

T6:  Refer to INSTALLATION , Crank Pulley.
