Abs Control Module And Hydraulic Control Unit (ABSCM&H/U)

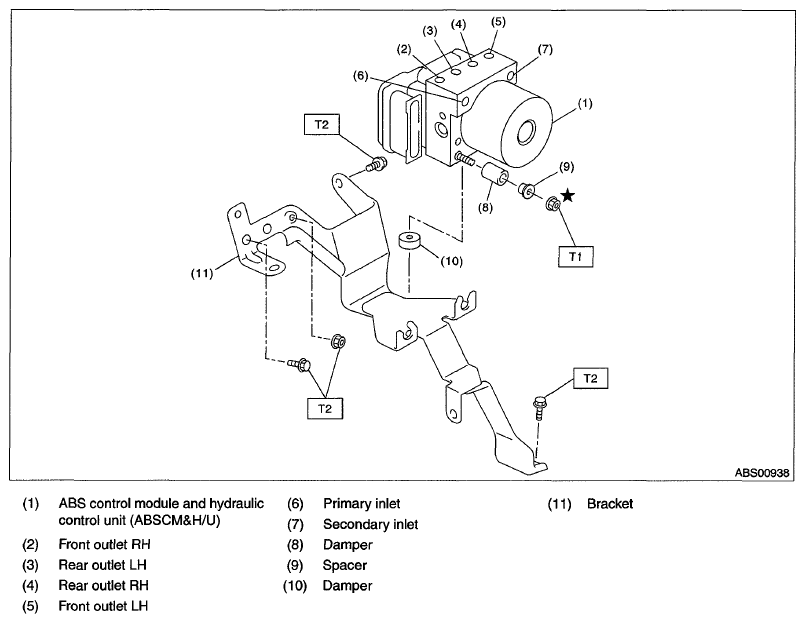

Fig 1: Identifying ABSCM&H/U Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.76, 5.5)

T2: 33 (3.3, 24)
