Front Hood Lock And Remote Openers

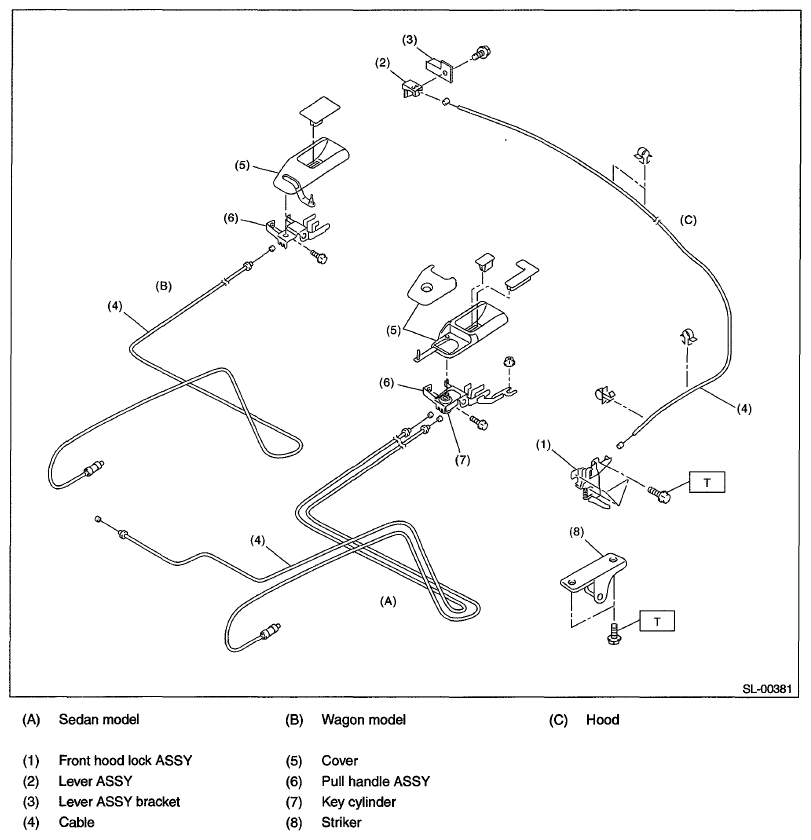

Fig 1: Identifying Front Hood Lock And Remote Openers Components

G06340339

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 33 (3.36, 24.2)
