Components With Torque Specifications: Generator

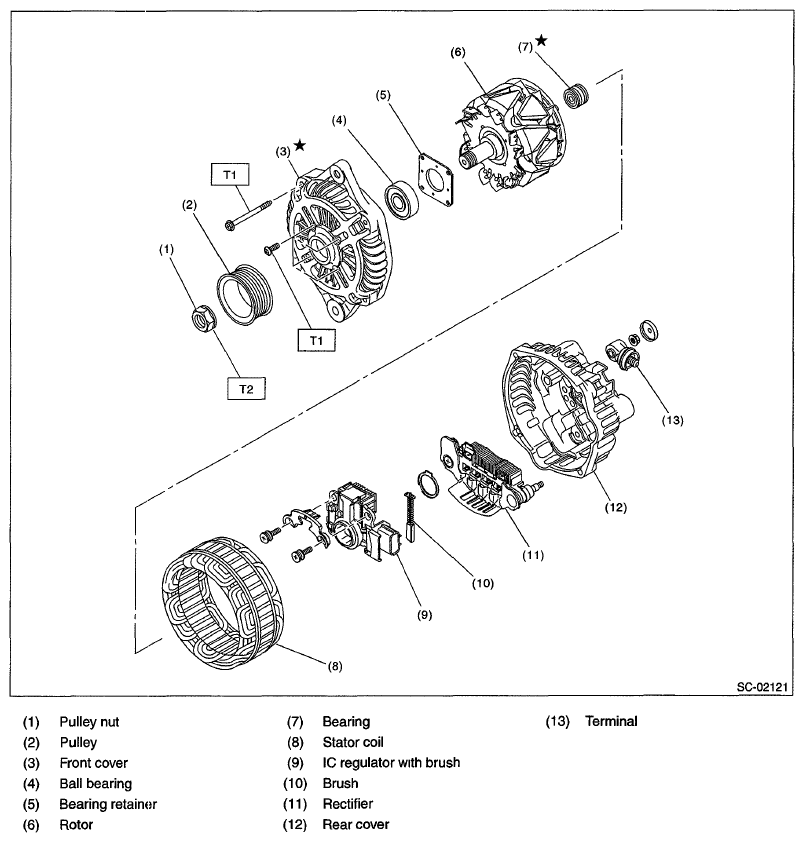

Fig 1: Exploded View Of Generator

G06334641

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1. 4.7(0.5,3.5)

T2: 108(11.0,79.8)
