ON Charge Pipe: Installation

Install the oil charge pipe with a new O-ring.
NOTE: Use new bolts.

Tightening torque: 38 N.m (3.9 kgf-m, 28.0 ft-lb)

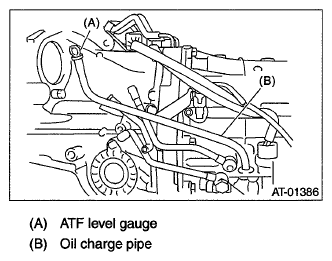

Fig 1: Identifying ATF Level Gauge And Oil Charge Pipe
Courtesy of SUBARU OF AMERICA, INC.
Install the intercooler. (Turbo model) Refer to INSTALLATION , Intercooler.
Install the air intake chamber. (Non-turbo model) Refer to INSTALLATION , Air Intake Chamber.
