Automatic Transmission Fluid: Replacement

Lift up the vehicle.
Remove the ATF drain plug to drain ATF.
CAUTION: Directly after the vehicle has been running or the engine has been long idle running, the ATF is hot. Be careful not to burn yourself.
Check the ATF condition. Refer to CONDITION CHECK , Automatic Transmission Fluid.
Tighten the ATF drain plug.
NOTE: Use a new gasket.

Tightening torque: 20 N.m (2.0 kgf-m, 14.8 ft-lb)

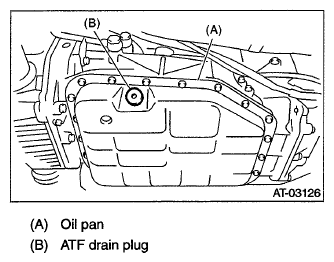

Fig 1: Identifying Oil Pan And ATF Drain Plug
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Pour ATF from the oil charge pipe.
Recommended fluid: Refer to HYDRAULIC CONTROL AND LUBRICATION , SPECIFICATION, General Description.

CAUTION: Be sure to use the recommended or equivalent ATF. Using material except recommended one or substitute would cause trouble.

Capacity: Fill with the same amount of ATF as drained.

Capacity when transmission is overhauled: 9.6 -10.0 6(10.1 - 10.6 US qt, 8.4-8.8 lmp 0)
Check the level and leaks of ATF. Refer to INSPECTION , Automatic Transmission Fluid.
