Universal Joint: Inspection

WARNING: This page is about a different variant/trim than selected.

Check for wear, damage or any other faults. Replace as necessary
Service limit: Universal joint play: 0 mm (0 in) Maximum swing torque: 0.3 N (0.03 kgf, 0.07 lbf)

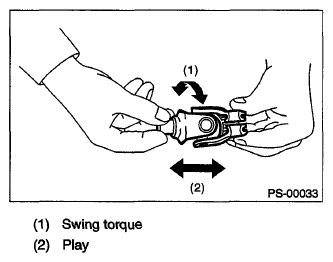

Fig 1: Checking Universal Joint Play
Courtesy of SUBARU OF AMERICA, INC.
Measure the swing torque of universal joint.
Service limit: Maximum load: 3.8 N (0.39 kgf, 0.86 lbf) or less

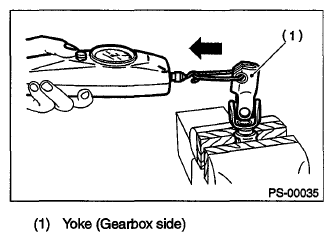

Fig 2: Measuring Swing Torque Of Universal Joint - Yoke (Gear Box Side)
Courtesy of SUBARU OF AMERICA, INC.

Service limit: Maximum load: 3.8 N (0.39 kgf, 0.86 lbf) or less

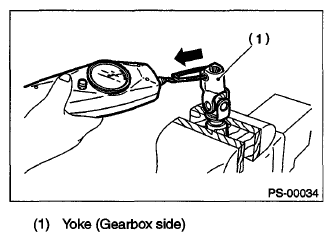

Fig 3: Measuring Swing Torque Of Universal Joint - Yoke (Gear Box Side)
Courtesy of SUBARU OF AMERICA, INC.

Service limit: Maximum load: 7.3 N (0.74 kgf, 1.64 lbf) or less

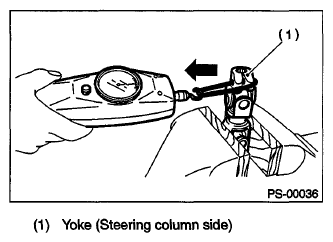

Fig 4: Measuring Swing Torque Of Universal Joint - Yoke (Steering Column Side)
Courtesy of SUBARU OF AMERICA, INC.

Service limit: Maximum load: 7.3 N (0.74 kgf, 1.64 lbf) or less

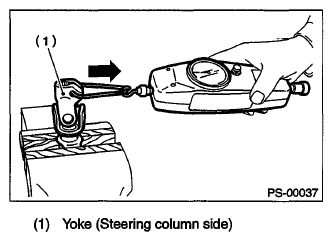

Fig 5: Measuring Swing Torque Of Universal Joint - Yoke (Steering Column Side)
Courtesy of SUBARU OF AMERICA, INC.
