Power Assisted System

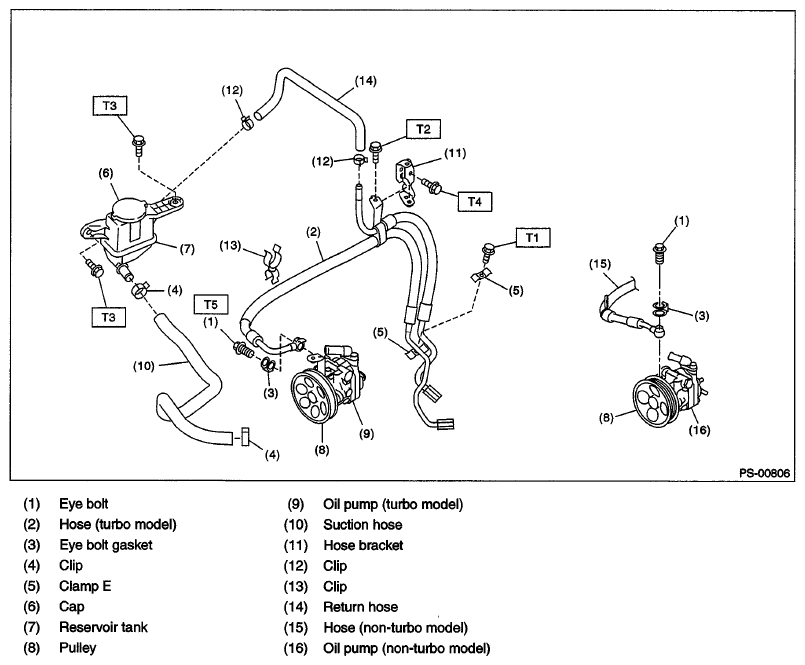

Fig 1: Exploded View Of Hose And Tank

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.76, 5.5)

T2: 10 (1.0, 7.4)

T3: 13 (1.3, 9.6)

T4: 18 (1.8, 13.3)

T5: 40 (4.1, 29.5)

Fig 2: Exploded View Of Gearbox Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 3.9 (0.4, 2.9)

T2: 10 (1.0, 7.4)

T3: 15 (1.5, 11.1)

T4: 17 (1.7, 12.5)

TS: 20 (2.0, 14.8)

T6: 24 (2.4, 17.7)

T7: 25 (2.5, 18.4)

T8: 27 (2.8, 19.9)

T9: 37 (3.8, 27.3)

T10: 29 (3.0, 21.4)

T11: 60 (6.1, 44.3)

T12: 70 (7.1, 51.6)

T13: 85 (8.7, 62.7)

T14: 90 (9.2, 66.4)
