Under-Hood Fuse/Relay Box
NOTE:

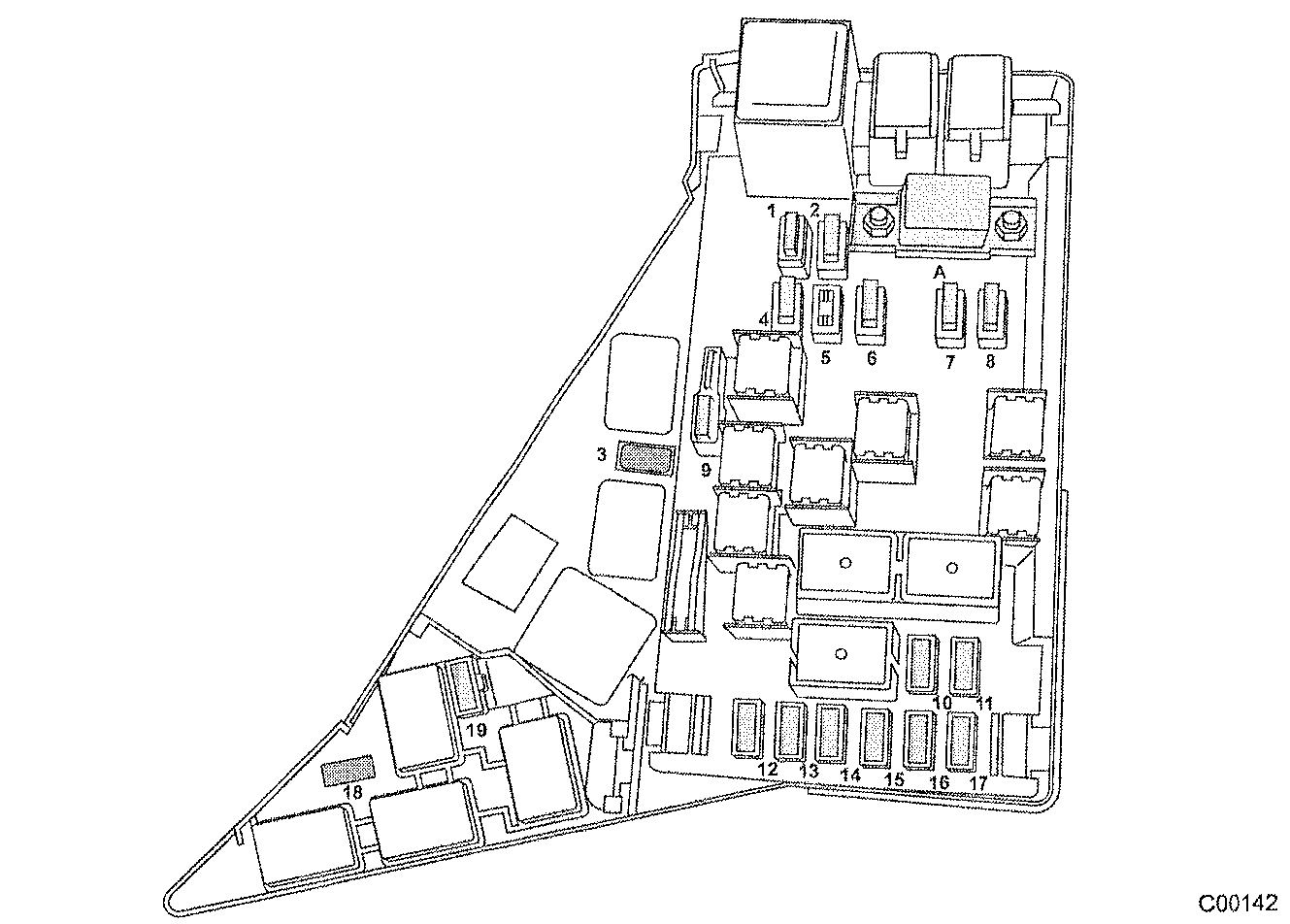

Under-hood fuse/relay box is located in the side of engine compartment, see illustration below.
UNDER-HOOD FUSE/RELAY BOX LEGEND
| Fuse No. | Fuse Rating | Circuit |
|---|---|---|
| A | - | Main fuse |
| 1 | 30A | ABS Vehicle Dynamics Control Unit |
| 2 | 25A | Main fan |
| 3 | 10A | Secondary air combination valve (Turbo models only) |
| 4 | 25A | Sub fan |
| 5 | - | Empty |
| 6 | 10A | Audio |
| 7 | 30A | Headlight (Low beam) |
| 8 | 15A | Headlight (High beam) |
| 9 | 20A | Back-up lights |
| 10 | 15A | Horn |
| 11 | 25A | Rear window defogger Mirror heater |
| 12 | 15A | Fuel pump |
| 13 | 10A | Automatic Transmission Control Unit |
| 14 | 7.5A | Engine Control Unit |
| 15 | 15A | Turn & Hazard warning flashers |
| 16 | 15A | Tail & Illumination relay |
| 17 | 7.5A | Alternator |
| 18 | 15A | Headlight (Right side) |
| 19 | 15A | Headlight (Left side) |
