Component Description

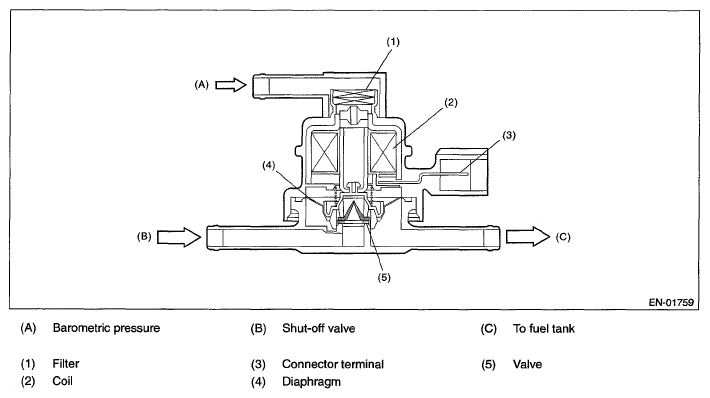

Fig 1: Identifying Fuel Tank Pressure Control Solenoid Valve Components
G05955749Courtesy of SUBARU OF AMERICA, INC.
