Diagnostic Method: Notes

Measure secondary air delivery pipe pressure, pulse of secondary air delivery pipe pressure and secondary air pipe airflow amount.

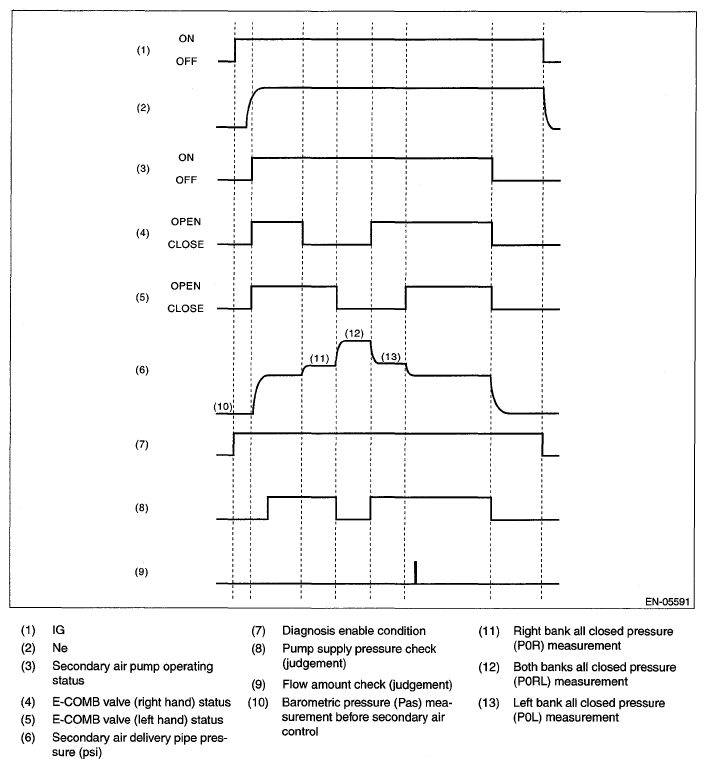

Fig 1: Diagnostic Method - Secondary Air Injection System
G05955716Courtesy of SUBARU OF AMERICA, INC.
