Component Description

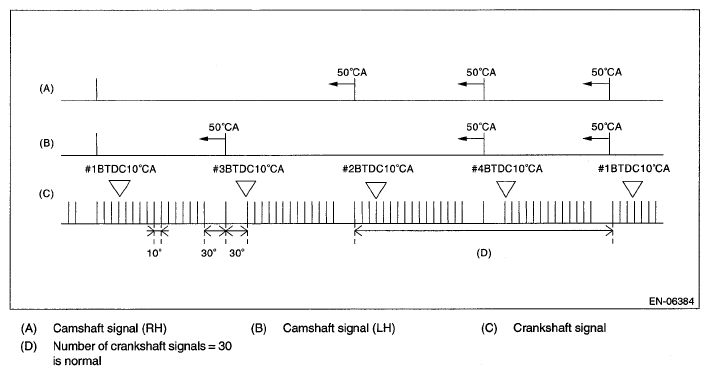

Fig 1: Diagnostic Method - Crankshaft Position Sensor
G05955713Courtesy of SUBARU OF AMERICA, INC.

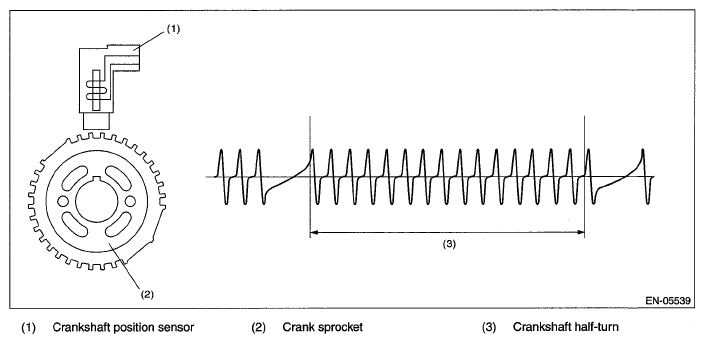

Fig 2: Crankshaft Position Sensor Component Description Chart
G05955714Courtesy of SUBARU OF AMERICA, INC.
