Sub-Compartment Fuel Level Sensor

This sensor detects the level of the fuel in the sub side (the side in which the fuel pump is not located) of the fuel tank. Also, when the jet pump is operating, fuel in the sub side is drawn up and transferred to the fuel pump.

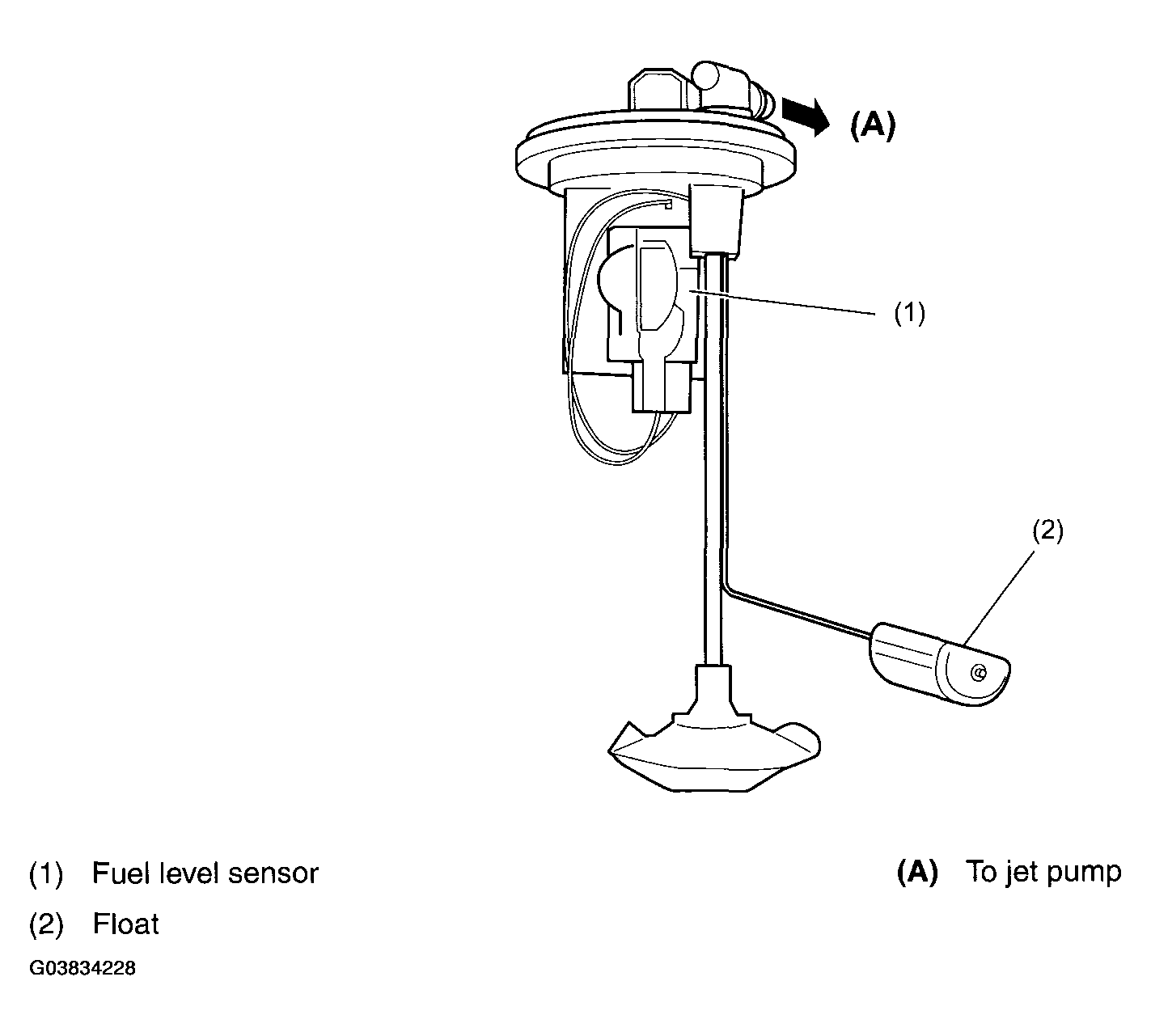

Fig 1: Identifying Sub-Compartment Fuel Level Sensor
G03834228Courtesy of SUBARU OF AMERICA, INC.
