Automatic Transmission 4AT (Diagnostics): Electrical Component Location: Location: Sensor

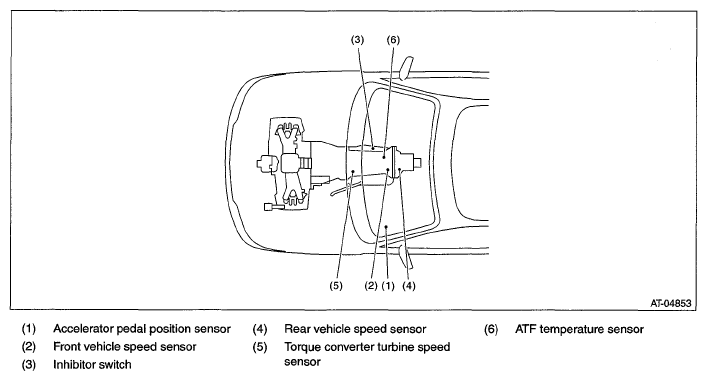

Fig 1: Identifying Sensors Location (1 Of 2)
G05956302Courtesy of SUBARU OF AMERICA, INC.

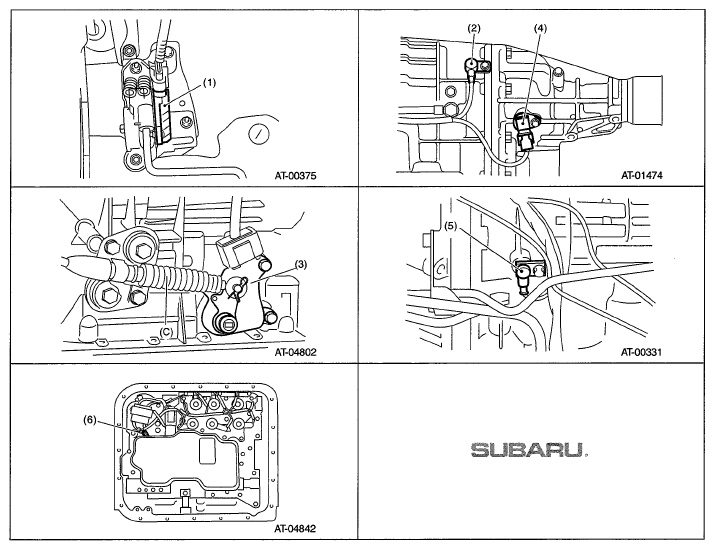

Fig 2: Identifying Sensors Location (2 Of 2)
G05956303Courtesy of SUBARU OF AMERICA, INC.
