Automatic Transmission (Diagnostics) (5AT)
>>
Electrical Component Location
>>
Location
>>
Control Module
Control Module

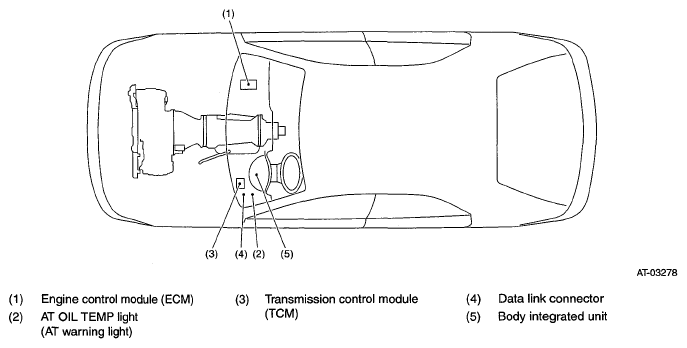

Fig 1: Identifying Control Modules Location (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

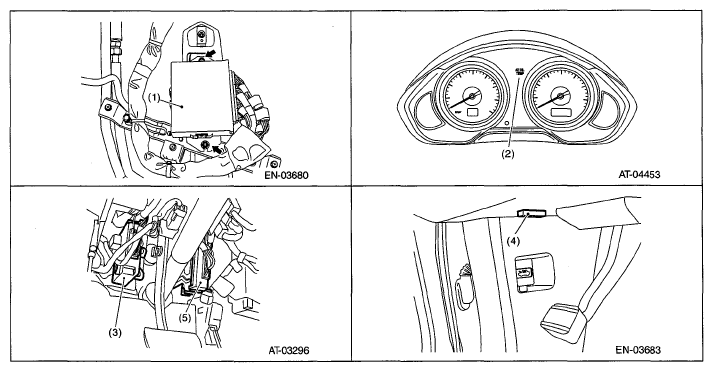

Fig 2: Identifying Control Modules Location (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
