Transmission Control Device & Parking Support
Transmission Control Device & Parking Support

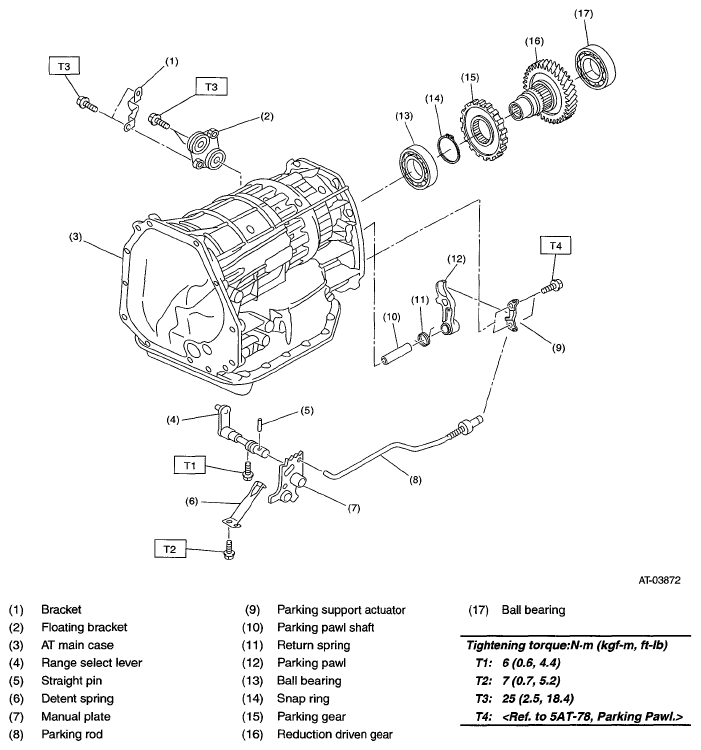

Fig 1: Transmission Control Device And Parking Support Component With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
