Engine Controls - Engine (Diagnostics) (H6DO): Electrical Component Location: Location: Engine

Control module

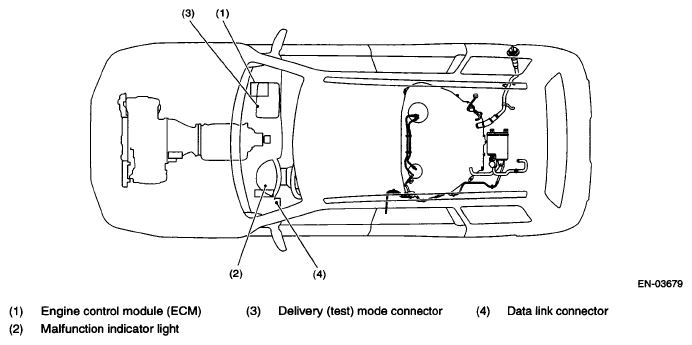

Fig 1: Identifying Engine Electrical Component Location (1 Of 14)
Courtesy of SUBARU OF AMERICA, INC.

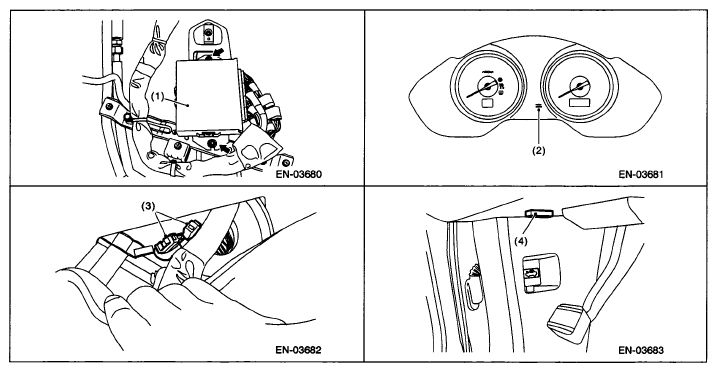

Fig 2: Identifying Engine Electrical Component Location (2 Of 14)
Courtesy of SUBARU OF AMERICA, INC.

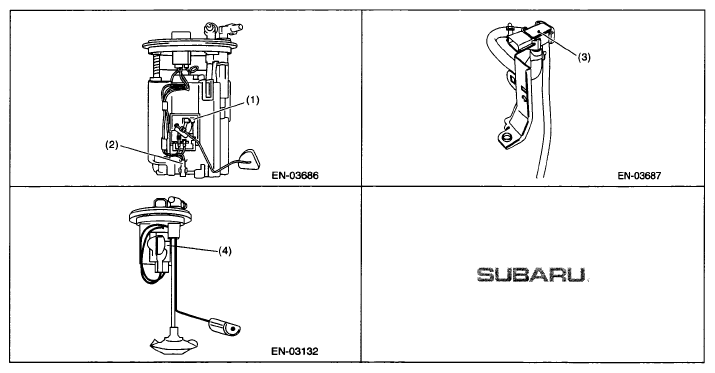

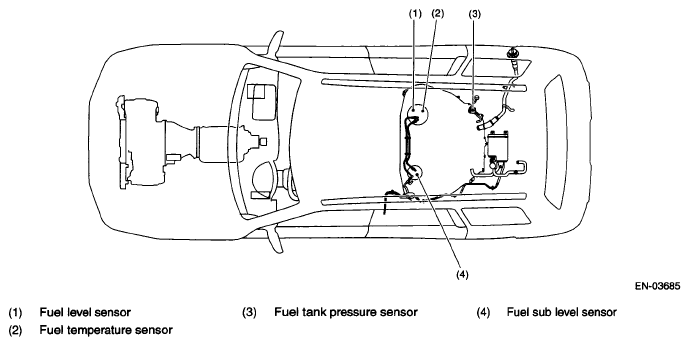

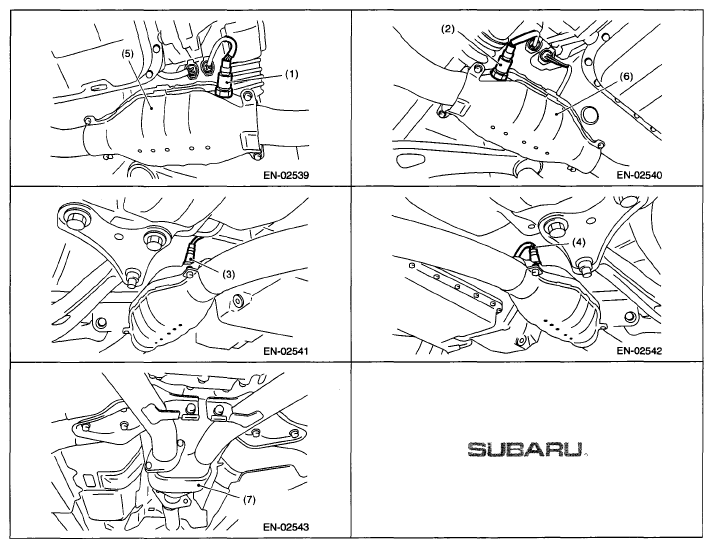

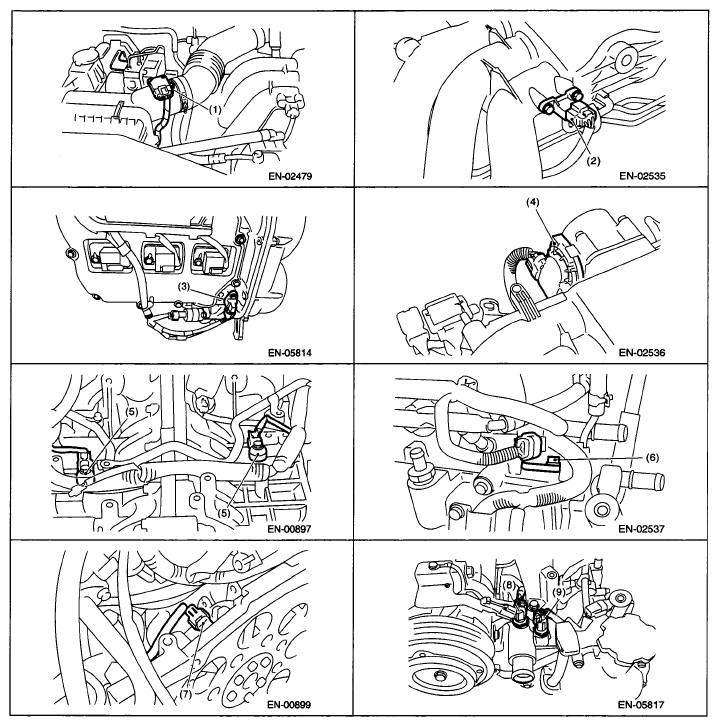

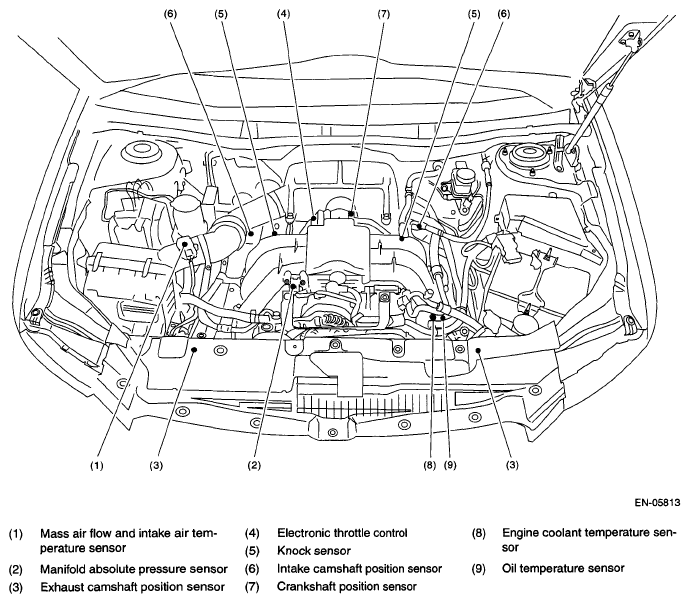

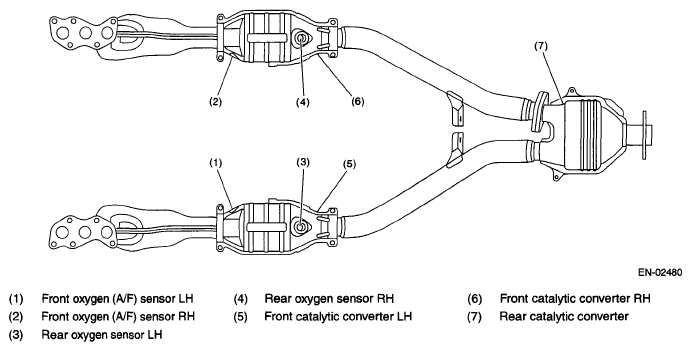

Sensor

Fig 3: Identifying Engine Electrical Component Location (3 Of 14)
Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Identifying Engine Electrical Component Location (4 Of 14)
Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Identifying Engine Electrical Component Location (5 Of 14)
Courtesy of SUBARU OF AMERICA, INC.

Fig 6: Identifying Engine Electrical Component Location (6 Of 14)
Courtesy of SUBARU OF AMERICA, INC.

Fig 7: Identifying Engine Electrical Component Location (7 Of 14)
Courtesy of SUBARU OF AMERICA, INC.

Fig 8: Identifying Engine Electrical Component Location (8 Of 14)
Courtesy of SUBARU OF AMERICA, INC.

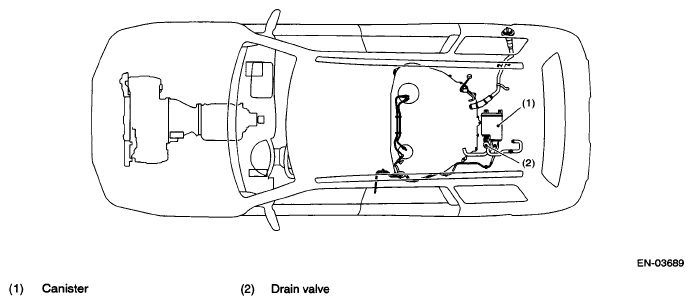

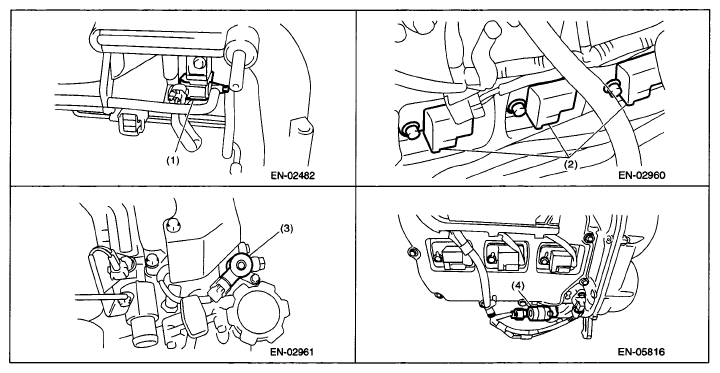

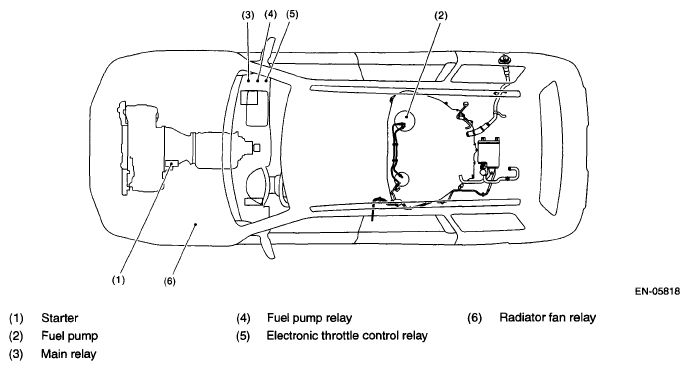

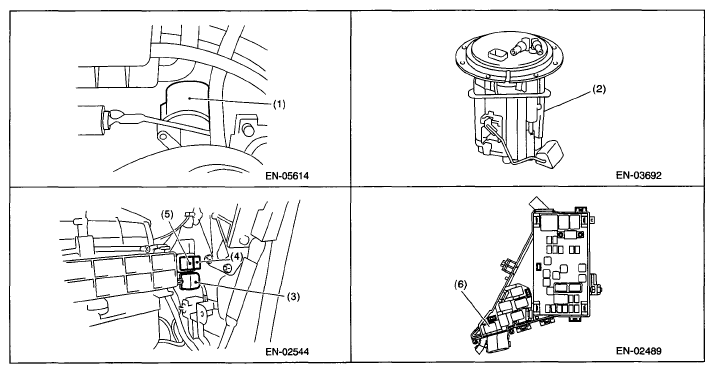

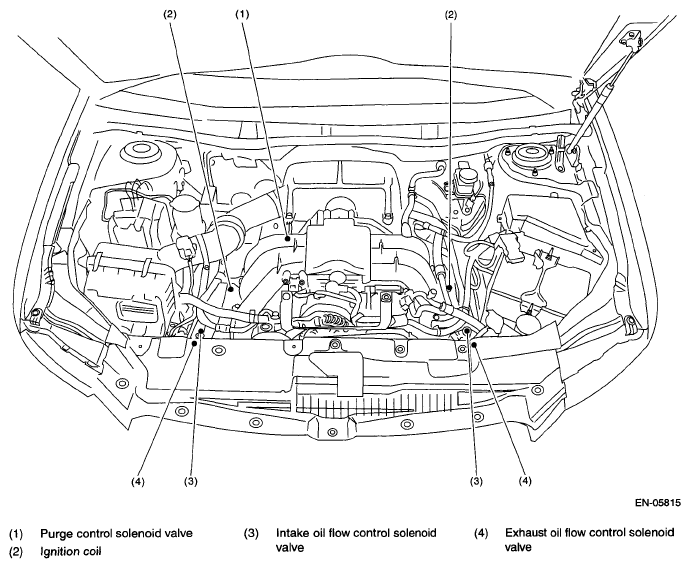

Solenoid valve, actuator, emission control system parts and ignition system parts

Fig 9: Identifying Engine Electrical Component Location (9 Of 14)
Courtesy of SUBARU OF AMERICA, INC.

Fig 10: Identifying Engine Electrical Component Location (10 Of 14)
Courtesy of SUBARU OF AMERICA, INC.

Fig 11: Identifying Engine Electrical Component Location (11 Of 14)
Courtesy of SUBARU OF AMERICA, INC.

Fig 12: Identifying Engine Electrical Component Location (12 Of 14)
Courtesy of SUBARU OF AMERICA, INC.

Fig 13: Identifying Engine Electrical Component Location (13 Of 14)
Courtesy of SUBARU OF AMERICA, INC.

Fig 14: Identifying Engine Electrical Component Location (14 Of 14)
Courtesy of SUBARU OF AMERICA, INC.
