Oil Pump: Installation

  1. Apply the engine oil to the O-ring and install it to the oil pan upper.
    NOTE: Use new O-rings.
    Fig 1: Locating Oil Pan Upper O-Ring
    G05668068Courtesy of SUBARU OF AMERICA, INC.
  2. Install the oil pump.

    Tightening torque:

    13 N.m (1.3 kgf-m, 9.6 ft-lb)

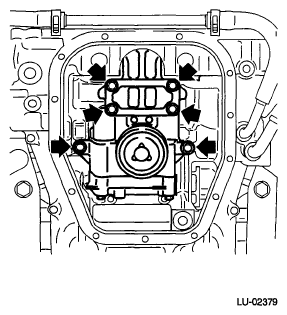

    Fig 2: Locating Oil Pump Mounting Bolts
    G05668067Courtesy of SUBARU OF AMERICA, INC.
  3. Install the oil pan lower. < Ref. to INSTALLATION , Oil Pan . >
  4. Install the timing chain. < Ref. to INSTALLATION , Timing Chain Assembly . >
  5. Install the chain cover. < Ref. to INSTALLATION , Chain Cover . >
  6. Install the crank pulley. < Ref. to INSTALLATION , Crank Pulley . >
  7. Install the V-belt. < Ref. to INSTALLATION , V-belt . >
  8. Install the radiator. < Ref. to INSTALLATION , Radiator . >
  9. Lift up the vehicle.
  10. Install the under cover.
  11. Lower the vehicle.
  12. Fill engine coolant. < Ref. to FILLING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant . >
