Home >> Subaru >> 2008 >> Tribeca Base >> Repair and Diagnosis >> Electrical >> Charging Systems >> Starting System & Charging System (H6DO) >> General Description >> Components With Torque Specifications >> Starter

Components With Torque Specifications: Starter

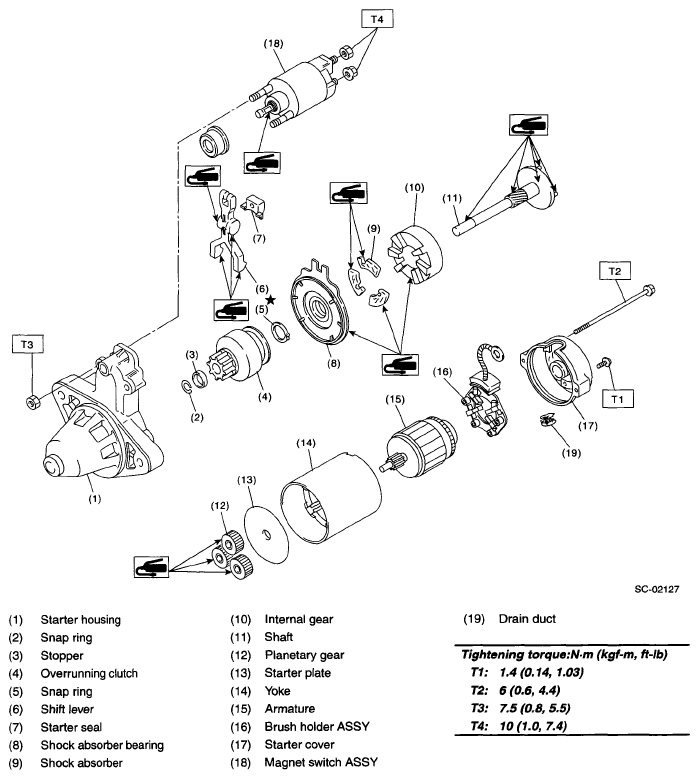

Fig 1: Exploded View Of Starter Components With Torque Specifications

G05668100

Courtesy of SUBARU OF AMERICA, INC.
