Under Coat: Specification

Repair material:

THREE BOND 6115

1. Take care that under coat does not attach to the locations other than shown in the figures and to the following locations.
   • High-temperature parts related to the exhaust pipe
   • Hoses, tubes, and harness parts
   • Installation surfaces of rear suspension, transmission, subframe, etc.
2. Application area and application thickness
   • Side view

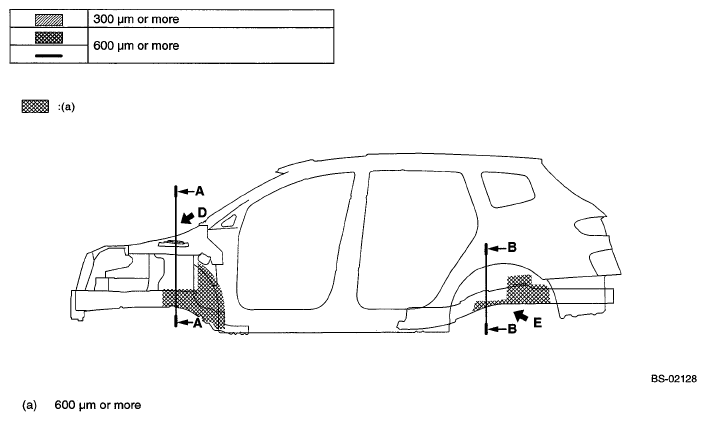

     Fig 1: Identifying Anticorrosion Wax Thickness (Side View)

     Courtesy of SUBARU OF AMERICA, INC.
   • Bottom view

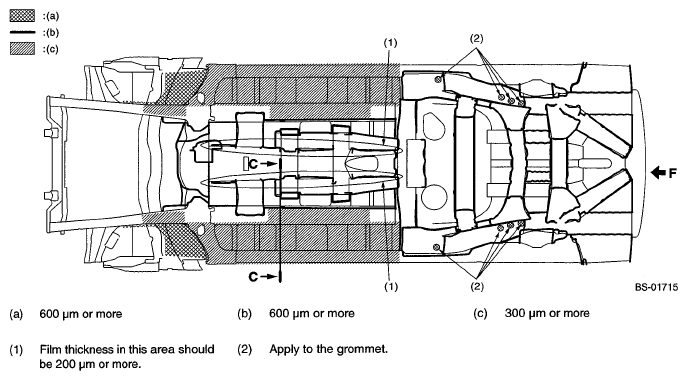

     Fig 2: Identifying Anticorrosion Wax Thickness - Bottom View (1 Of 6)

     Courtesy of SUBARU OF AMERICA, INC.

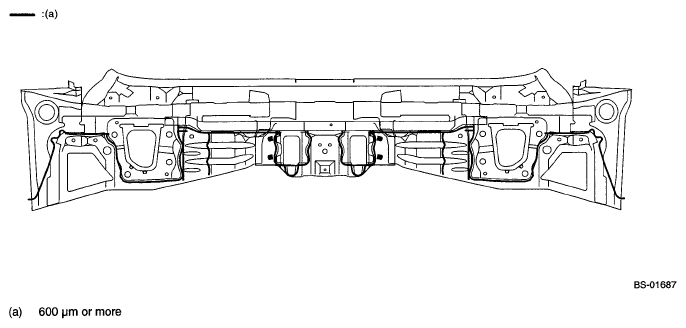

     Fig 3: Identifying Anticorrosion Wax Thickness - Bottom View (2 Of 6)

     Courtesy of SUBARU OF AMERICA, INC.
     Fig 4: Identifying Anticorrosion Wax Thickness - Bottom View (3 Of 6)

     Courtesy of SUBARU OF AMERICA, INC.

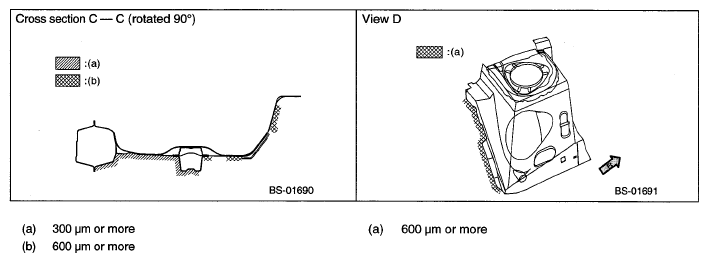

     Fig 5: Identifying Anticorrosion Wax Thickness - Bottom View (4 Of 6)

     Courtesy of SUBARU OF AMERICA, INC.

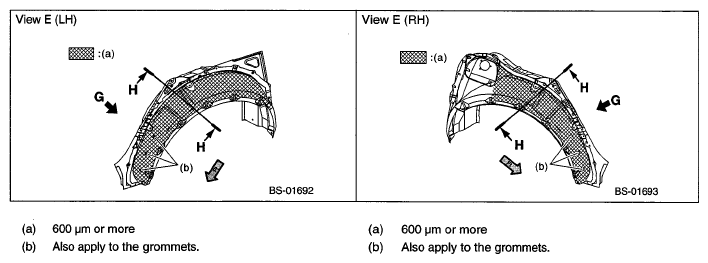

     Fig 6: Identifying Anticorrosion Wax Thickness - Bottom View (5 Of 6)

     Courtesy of SUBARU OF AMERICA, INC.

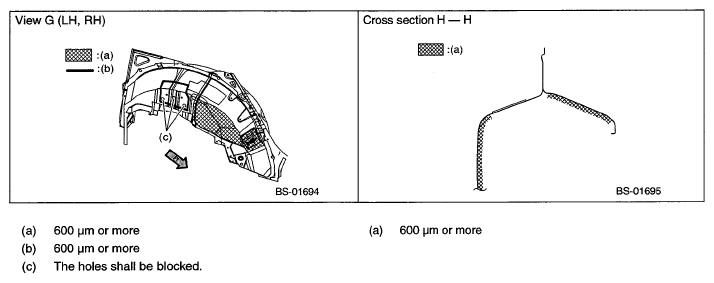

     Fig 7: Identifying Anticorrosion Wax Thickness - Bottom View (6 Of 6)

     Courtesy of SUBARU OF AMERICA, INC.
