Body Sealing: Specification

Used material:

THREE BOND 4101 (004403063)

-: Sealing application locations

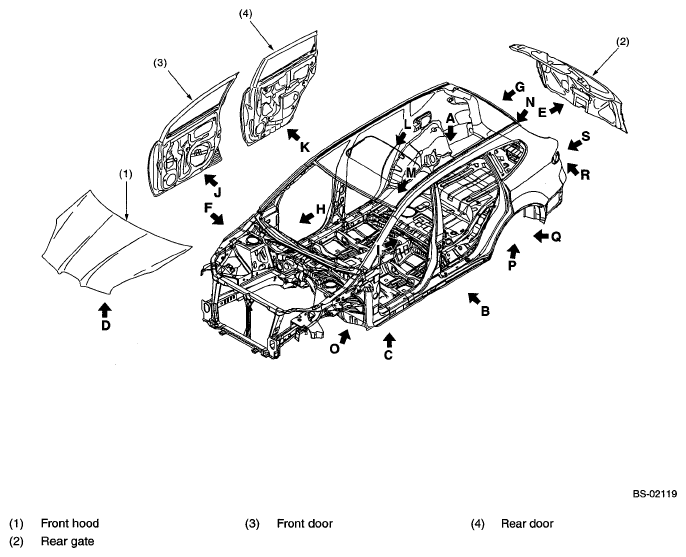

Fig 1: Locating Body Sealing Area

Courtesy of SUBARU OF AMERICA, INC.

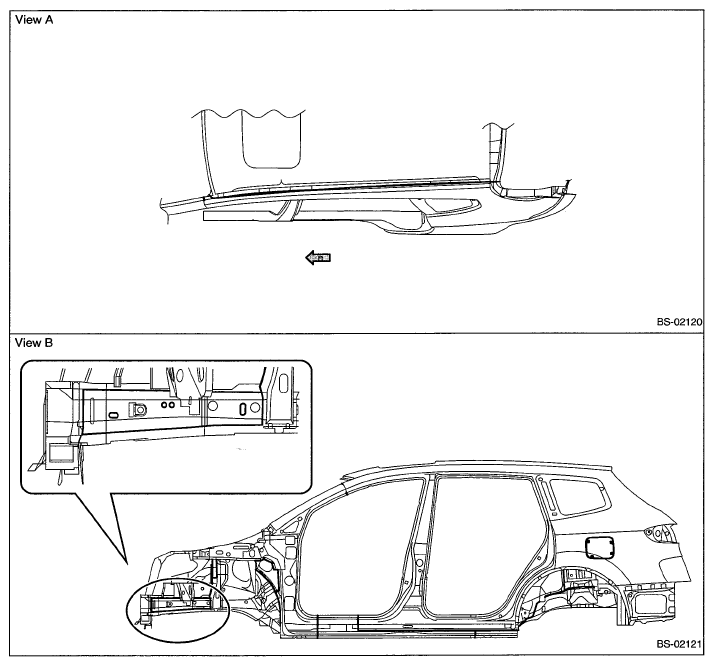

Fig 2: Identifying Body Sealing Area (View A And View B)

Courtesy of SUBARU OF AMERICA, INC.

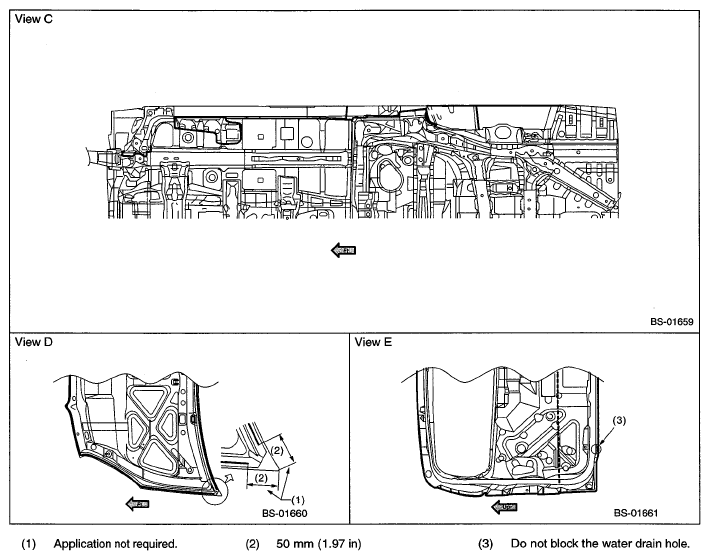

Fig 3: Identifying Body Sealing Area (View C, D And View E)

Courtesy of SUBARU OF AMERICA, INC.

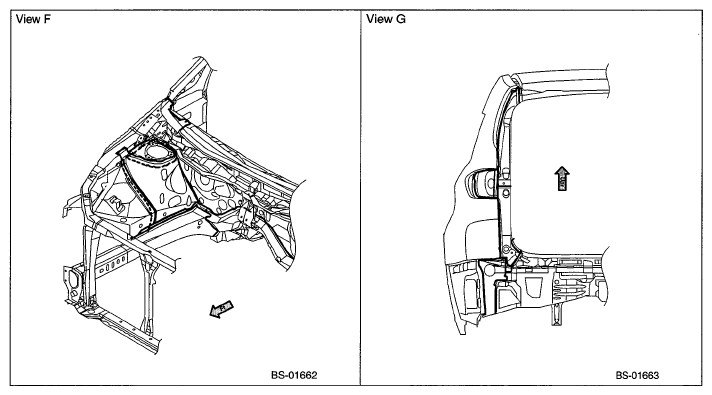

Fig 4: Identifying Body Sealing Area (View F And View G)

Courtesy of SUBARU OF AMERICA, INC.

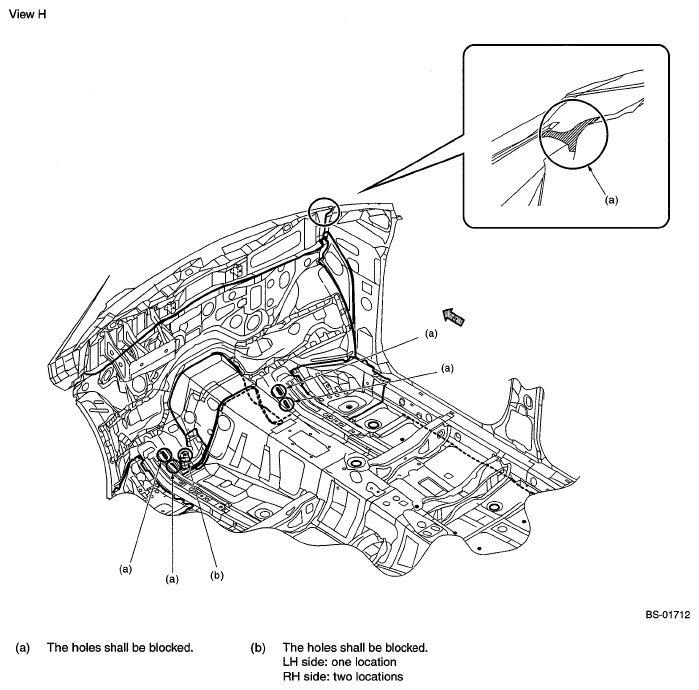

Fig 5: Identifying Body Sealing Area (View H)

Courtesy of SUBARU OF AMERICA, INC.

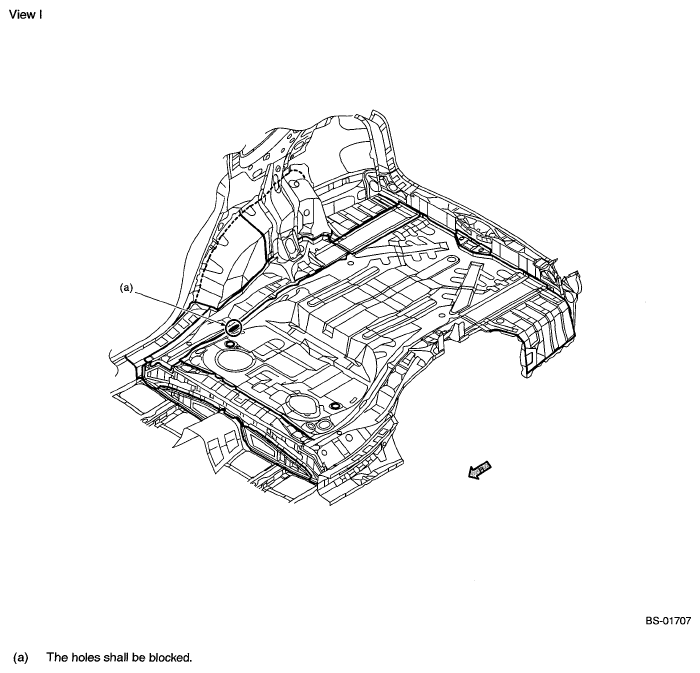

Fig 6: Identifying Body Sealing Area (View I)

Courtesy of SUBARU OF AMERICA, INC.

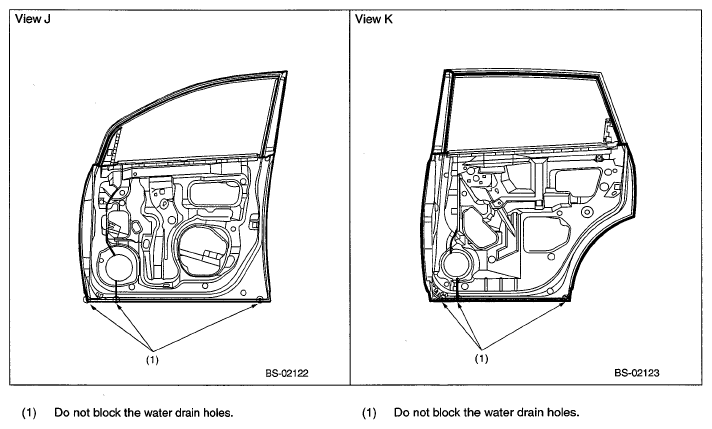

Fig 7: Identifying Body Sealing Area (View J And View K)

Courtesy of SUBARU OF AMERICA, INC.

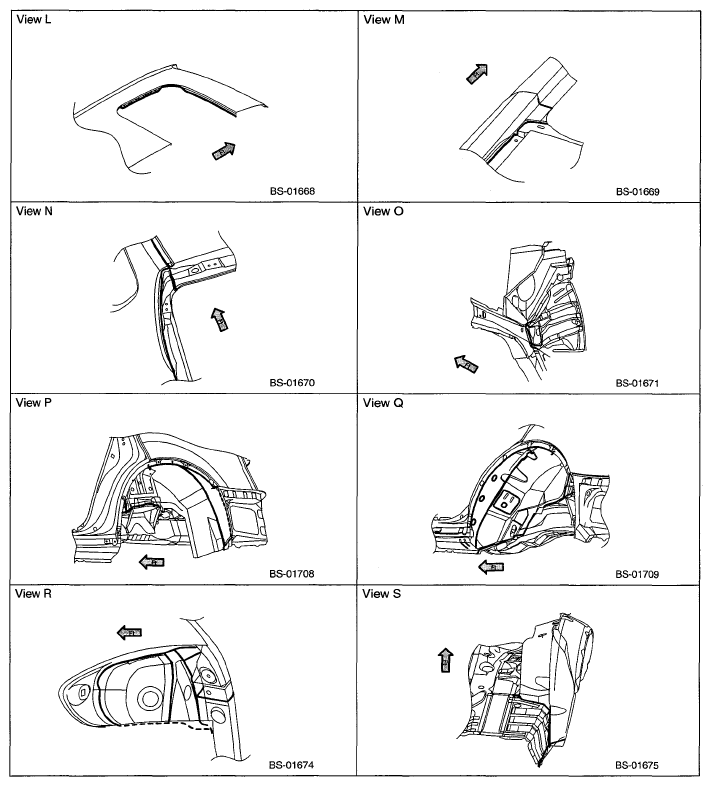

Fig 8: Identifying Body Sealing Area (View L To View S)

Courtesy of SUBARU OF AMERICA, INC.
