Component Description

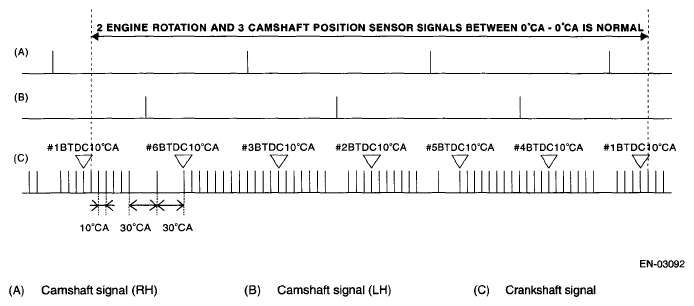

Fig 1: Identifying Engine Rotation And Camshaft Position Sensor Signal Reference Scale
G05664213Courtesy of SUBARU OF AMERICA, INC.

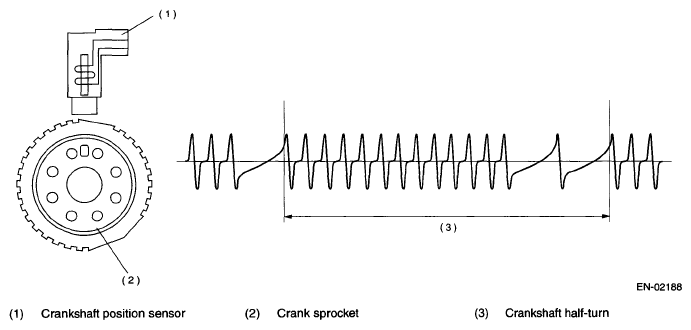

Fig 2: Identifying Crankshaft Position Sensor And Sprocket With Waveform Graph
G05664214Courtesy of SUBARU OF AMERICA, INC.
