Component Description

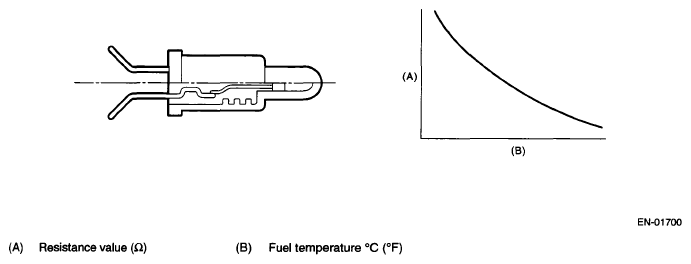

Fig 1: Identifying Fuel Temperature Sensor "A" Circuit Range/Performance And Output Voltage Graph
G05664201Courtesy of SUBARU OF AMERICA, INC.
