Component Description

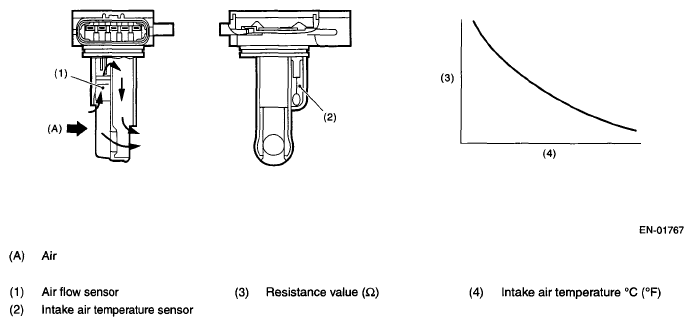

Fig 1: Identifying Intake Air Temperature Sensor 1 Circuit High And Output Voltage Graph
G05664183Courtesy of SUBARU OF AMERICA, INC.
