Components With Torque Specifications: Generator

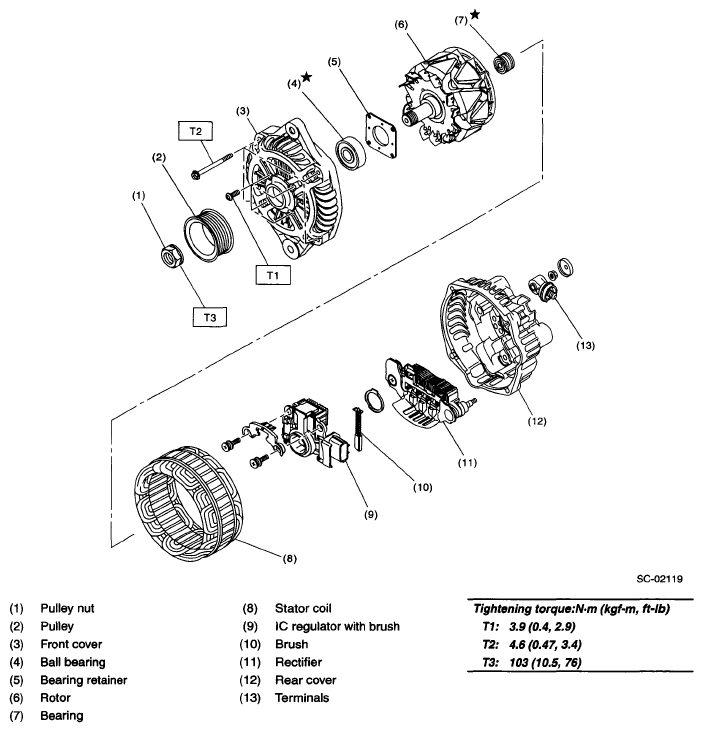

Fig 1: Exploded View Of Generator Components With Torque Specifications

G05668101

Courtesy of SUBARU OF AMERICA, INC.
