Components With Torque Specifications

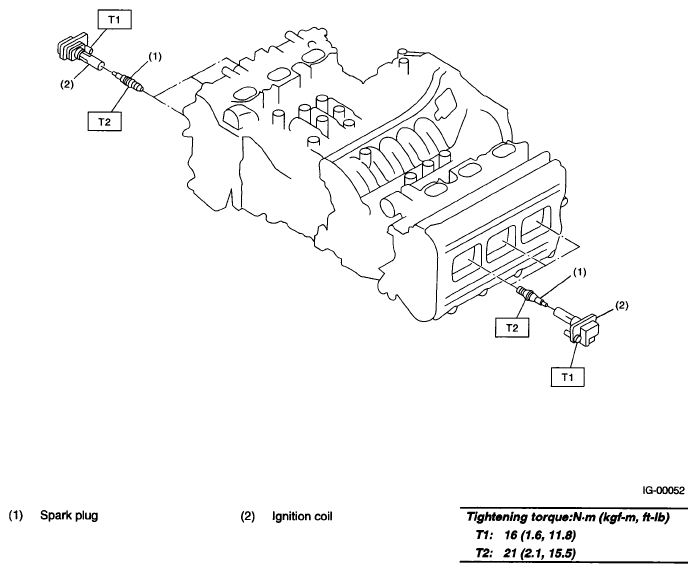

Fig 1: Identifying Ignition System Components

G05665809

Courtesy of SUBARU OF AMERICA, INC.
