Mechanism & Function -- Clutch System
>>
Clutch
>>
Non-Turbo Models
Non-Turbo Models

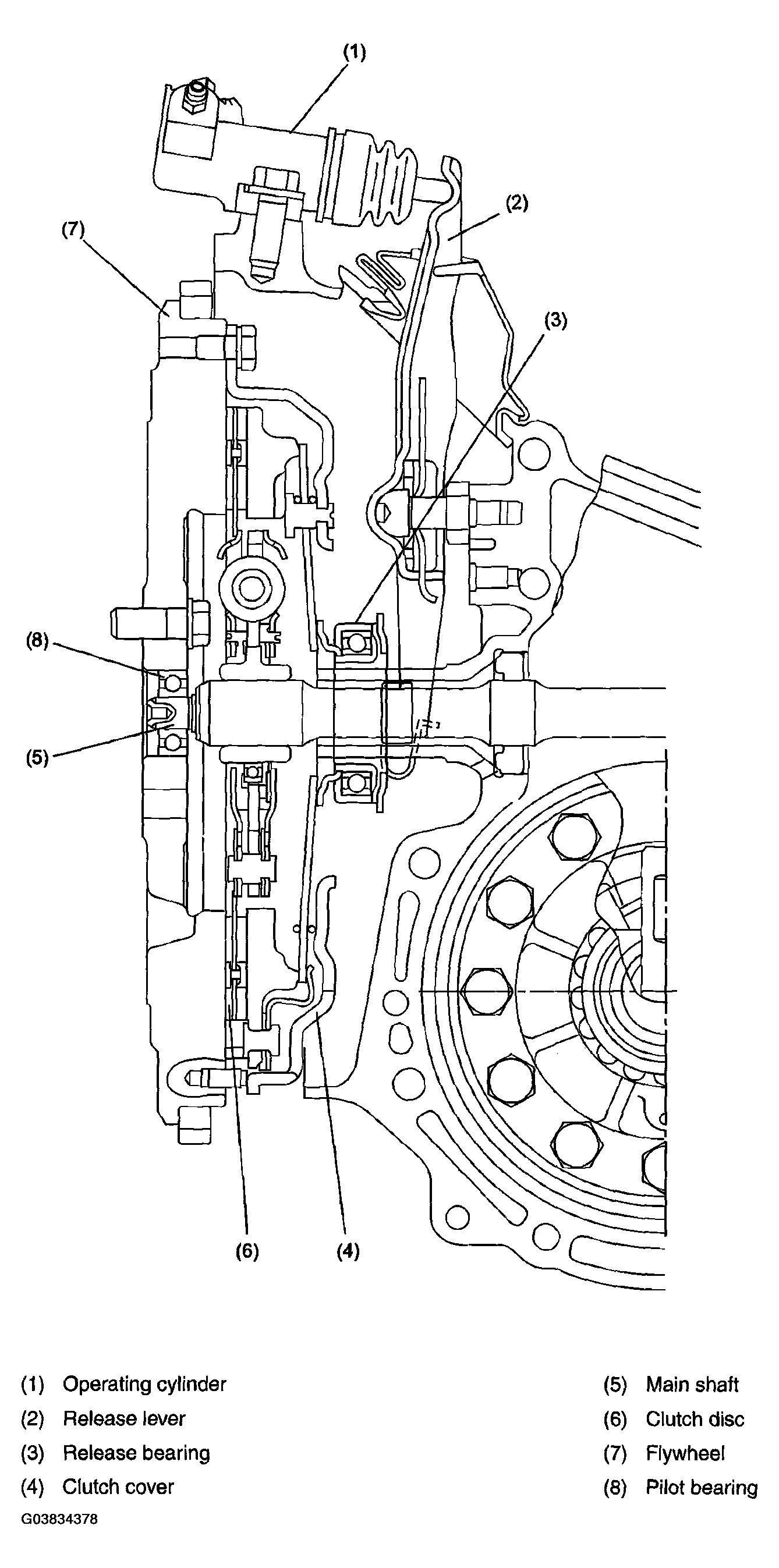

Fig 1: Sectional View Of Clutch (Non-Turbo Models)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
