Input Shaft Play

WARNING: This page is about a different car, the 2006 Subaru Outback and 2006 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

In radial direction:

Service limit

0.18 mm (0.0071 in) or less

On condition

P: 98 N (10 kgf, 22 lb)

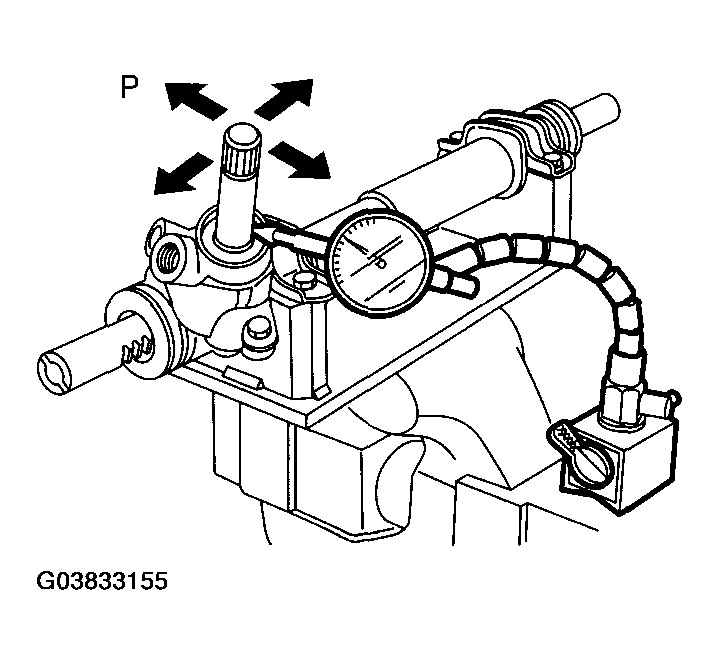

Fig 1: Identifying Input Shaft Play In Radial Direction

Courtesy of SUBARU OF AMERICA, INC.

In axial direction:

Service limit

0.27 mm (0.0106 in) or less

On condition

P: 20 - 49 N (2 - 5 kgf, 4 - 11 lb)

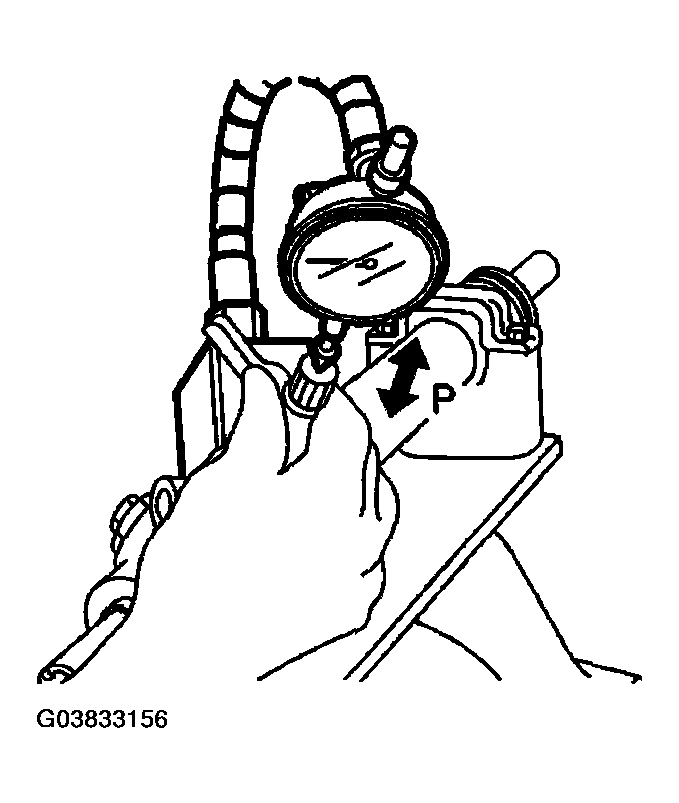

Fig 2: Identifying Input Shaft Play In Axial Direction

Courtesy of SUBARU OF AMERICA, INC.
