Rear Drive Shaft: Installation

WARNING: This page is about a different car, the 2006 Subaru Outback and 2006 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Insert the BJ or EBJ into rear hub splines.
CAUTION:
- Be careful not to damage the magnetic encoder.
- Do not get closer the tool which charged magnetism to magnetic encorder.
Fig 1: Precautions For Operating Magnetic Encoder
Courtesy of SUBARU OF AMERICA, INC.
Draw the rear drive shaft into specified position.
CAUTION: Do not hammer drive shaft when installing it.
Tighten the axle nut temporarily.
Install the rear differential assembly.
- T-type
  < Ref. to INSTALLATION , Rear Differential (T-type). >
- VA-type
< Ref. to INSTALLATION , Rear Differential (VA-type). >
While applying the parking brake and depressing the brake pedal, tighten a new axle nut (olive color) to specified torque and lock it securely.
Tightening torque: 240 N.m (19.4 kgf-m, 177 ft-lb)
CAUTION:
- Install the wheel after installation of the axle nut. Failure to follow this rule may damage the wheel bearing.
- Be sure to tighten the axle nut to specified torque. Do not overtighten it as this may damage wheel bearing.

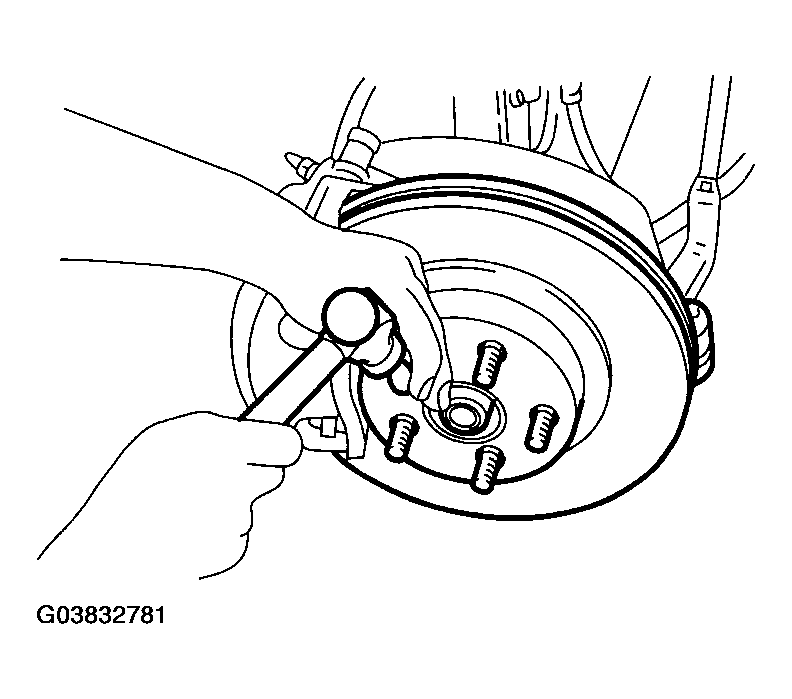

Lock the axle nut securely.

Fig 2: Locking Axle Nut
Courtesy of SUBARU OF AMERICA, INC.
Install the wheel.
Tightening torque: 90 N.m (9.2 kgf-m, 66 ft-lb)
