Rear Drive Shaft Assembly
WARNING: This page is about a different car, the 2006 Subaru Outback and 2006 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
REAR DRIVE SHAFT ASSEMBLY SPECIFICATIONS
| Model |
Type of drive shaft |

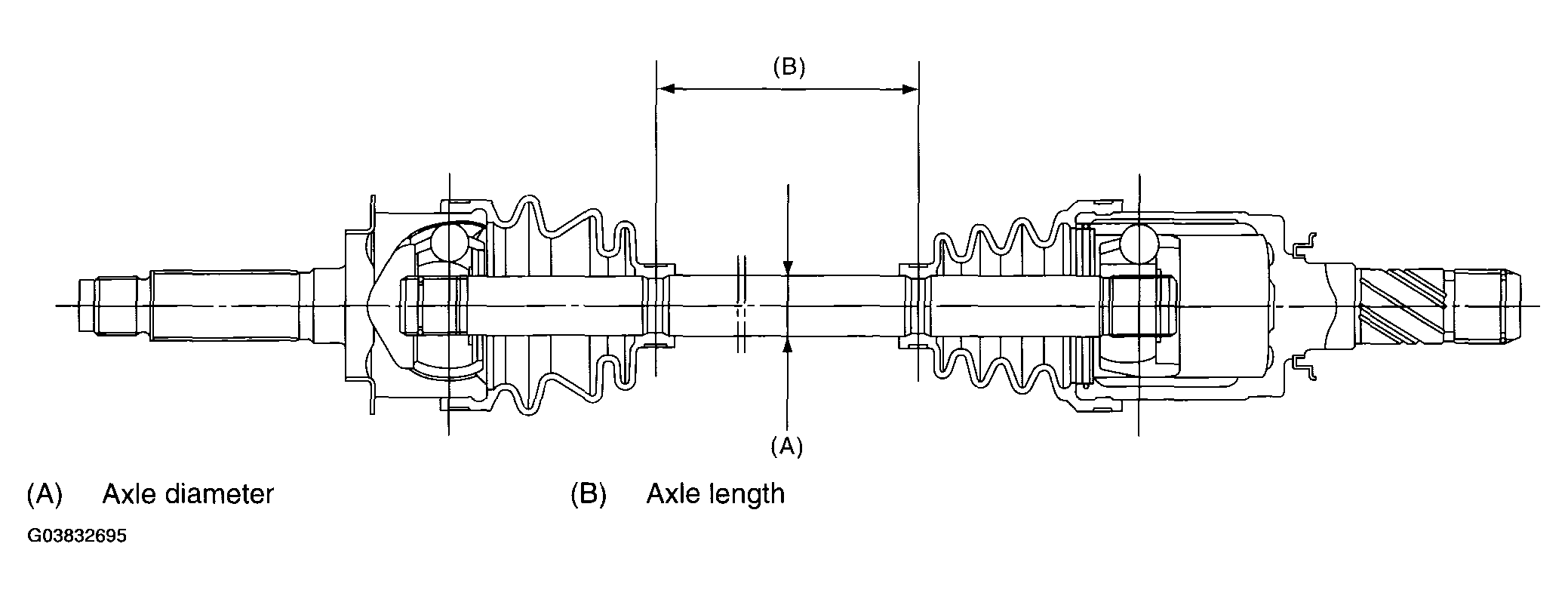

Axle diameter
D mm (in) |
Axle length L mm (in) |
| 2.5 i AT |
BJ75+DOJ75 |
22 (0.87) |
366.5 (14.43) |
| Except for 2.5 i AT |
EBJ82+DOJ79 |
22 (0.87) |
375.1 (14.77) |
Courtesy of SUBARU OF AMERICA, INC.
