Propeller Shaft
WARNING: This page is about a different car, the 2006 Subaru Outback and 2006 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

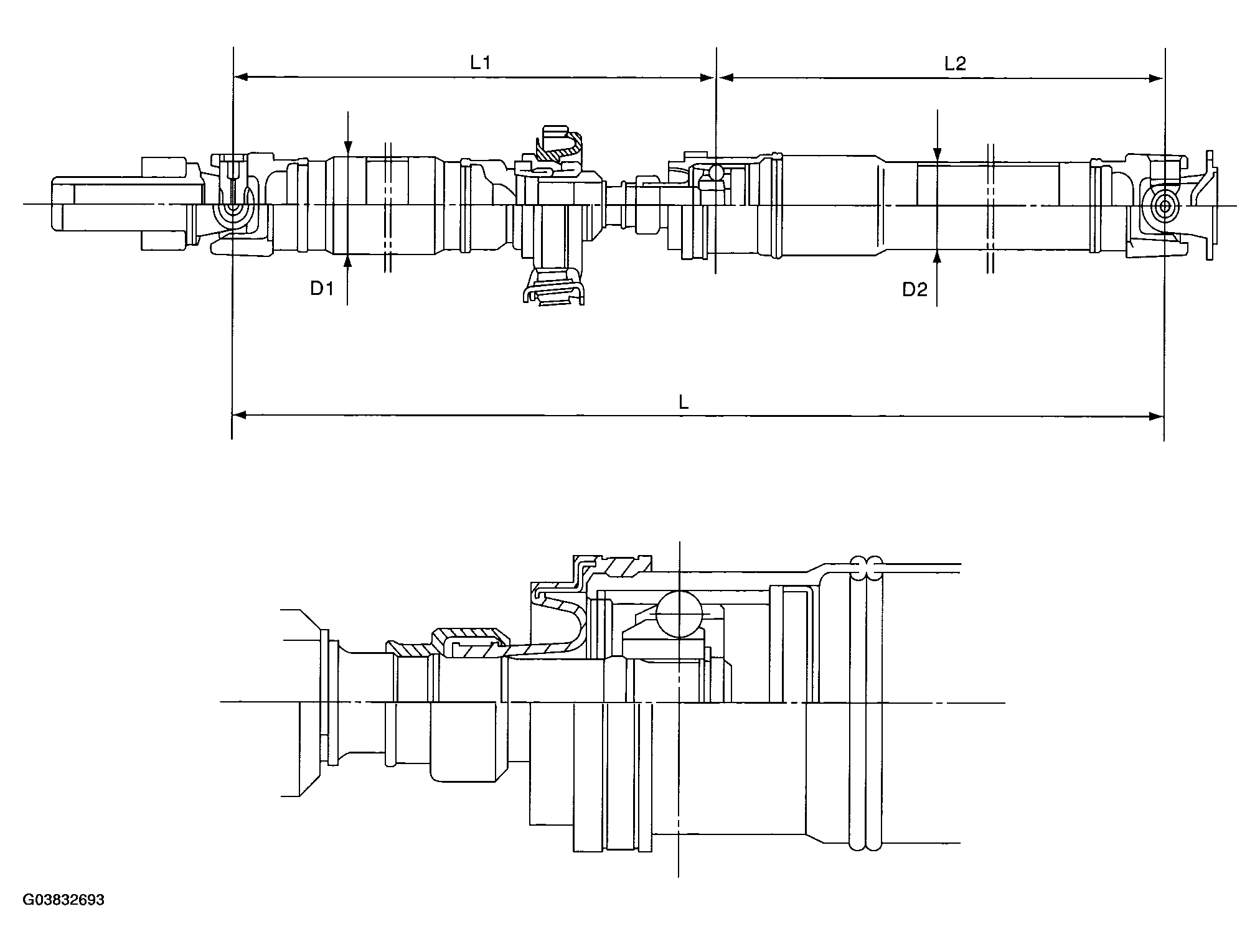

PROPELLER SHAFT SPECIFICATIONS
| Model | 5MT | 4AT | 5AT | ||
|---|---|---|---|---|---|
| Propeller shaft type | EDJ | ||||
| Propeller shaft length: L | mm (in) | 1,490 (58.66) | 1,430 (56.30) | 1,317 (51.85) | |
| Front propeller shaft Joint-to-joint length: L1 | mm (in) | 735 (28.9) | 675 (26.6) | 562 (22.1) | |
| Rear propeller shaft Joint-to-Joint length: L2 | mm (in) | 755 (29.7) | |||
| Outer diameter of tube: | mm (in) | D1 | 63.5 (2.50) | ||
| D2 | 57.5 (2.26) | ||||
