Special Tool

WARNING: This page is about a different car, the 2006 Subaru Outback and 2006 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL DESCRIPTIONS

ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
Fig 1 922431000 AXLE SHAFT INSTALLER
  • Used for installing axle shaft into housing.
  • Used with ADAPTER (927390000).
Fig 2 925091000 BAND TIGHTENING TOOL Used for tightening boot band.
  1. Jig for band
  2. Ratchet wrench
Fig 3 926470000 AXLE SHAFT PULLER Used for removing axle shaft.
Fig 4 18675AA000 DIFFERENTIAL SIDE OIL SEAL INSTALLER Used for installing differential side retainer oil seal.
Fig 5 927080000 HUB STAND Used for assembling hub bolt in hub.
Fig 6 927140000 AXLE SHAFT PULLER PLATE Same as plate 2 included in AXLE SHAFT PULLER (926470000).
Fig 7 28099PA090 OIL SEAL PROTECTOR
  • Used for installing rear drive shaft into rear differential.
  • For protecting oil seal.
Fig 8 28399SA010 OIL SEAL PROTECTOR
  • Used for installing front drive shaft into front differential.
  • For protecting oil seal.
Fig 9 28399AG000 (New adopted tool) HUB STAND Used for extracting hub bolt.
Fig 1: Identifying Special Tool ST-922431000
G03832699Courtesy of SUBARU OF AMERICA, INC.
Fig 2: Identifying Special Tool ST-925091000
G03832700Courtesy of SUBARU OF AMERICA, INC.

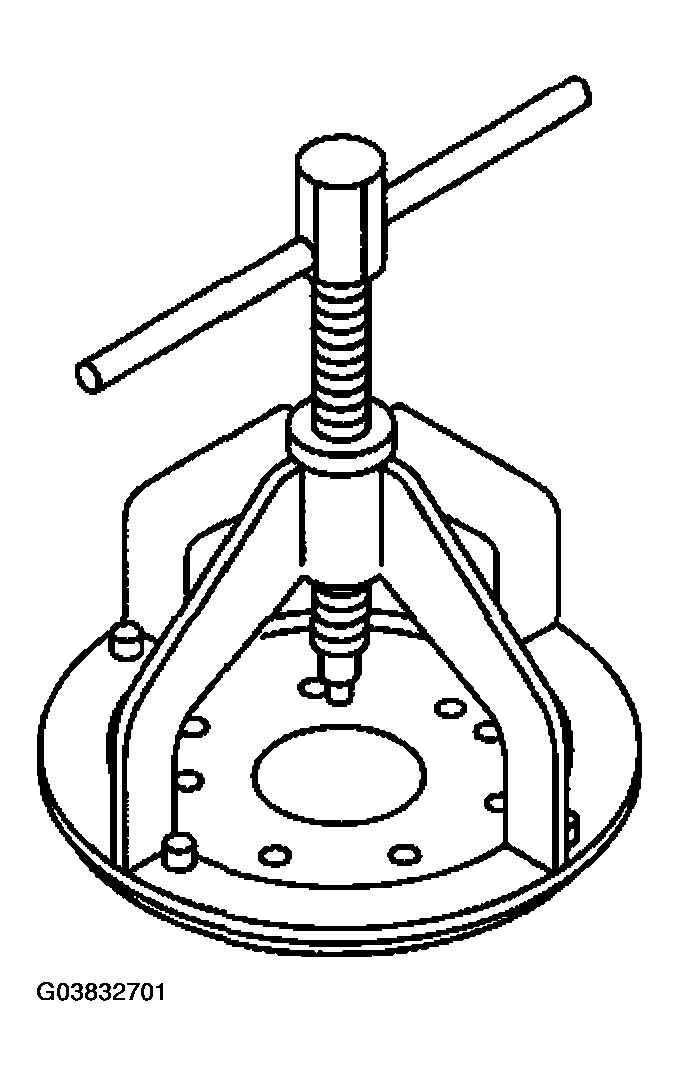

Fig 3: Identifying Special Tool ST-926470000
G03832701Courtesy of SUBARU OF AMERICA, INC.

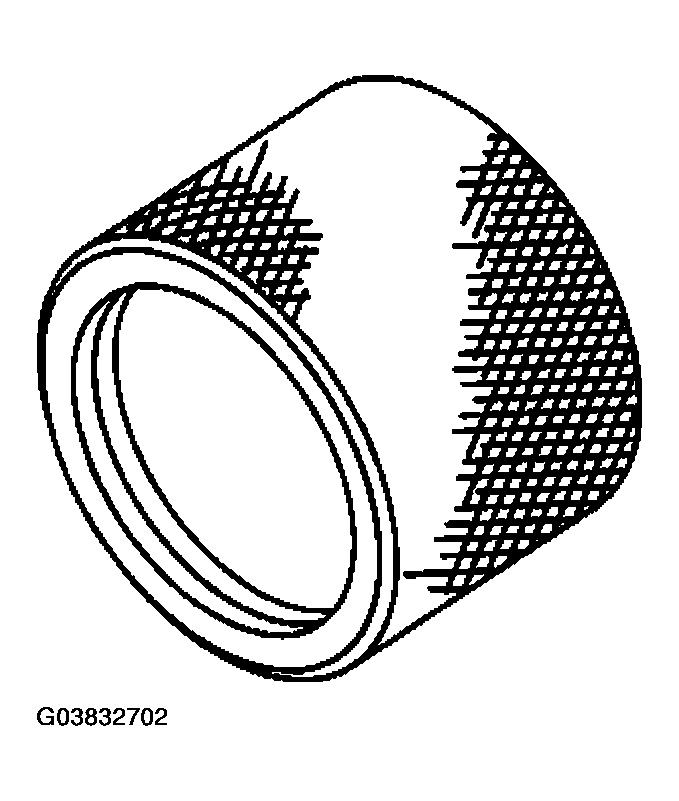

Fig 4: Identifying Special Tool ST18675AA000
G03832702Courtesy of SUBARU OF AMERICA, INC.
Fig 5: Identifying Special Tool ST-927080000
G03832703Courtesy of SUBARU OF AMERICA, INC.
Fig 6: Identifying Special Tool ST-927140000
G03832704Courtesy of SUBARU OF AMERICA, INC.
Fig 7: Identifying Special Tool ST28099PA090
G03832705Courtesy of SUBARU OF AMERICA, INC.
Fig 8: Identifying Special Tool ST28399SA010
G03832706Courtesy of SUBARU OF AMERICA, INC.
Fig 9: Identifying Special Tool ST28399AG000
G03832707Courtesy of SUBARU OF AMERICA, INC.
