Rear Differential Front Member: Removal

WARNING: This page is about a different car, the 2006 Subaru Outback and 2006 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Lift-up the vehicle.
  3. Support the rear differential using transmission jack, and then remove the rear differential front member.

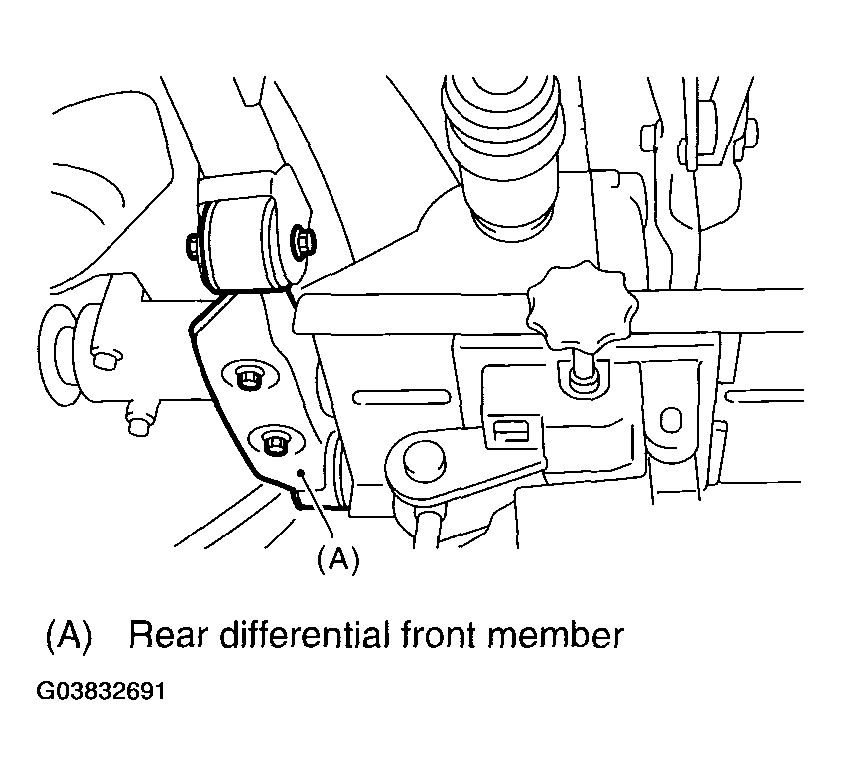

    Fig 1: Supporting Rear Differential Using Transmission Jack
    G03832691Courtesy of SUBARU OF AMERICA, INC.
