Special Tool

WARNING: This page is about a different car, the 2006 Subaru Outback and 2006 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL CHART

ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
Fig 1 398477701 HANDLE Used for installing front and rear bearing cone.
Fig 2 398477702 DRIFT
  • Used for press-fitting the bearing cone of differential carrier (front).
  • For T-type
Fig 3 398217700 ATTACHMENT SET Stand for rear differential carrier disassembly and assembly.
Fig 4 498447120 INSTALLER Used for installing front oil seal.
Fig 5 498427200 FLANGE WRENCH Used for stopping rotation of companion flange when removing and tightening self-locking nut.
Fig 6 398467700 DRIFT
  • Used for removing pinion, pilot bearing and front bearing cone.
  • For T-type and VA1 -type
Fig 7 399780104 WEIGHT Used for installing front bearing cone and pilot bearing companion flange.
Fig 8 899580100 INSTALLER Used for press-fitting front bearing cone and pilot bearing.
Fig 9 899904100 STRAIGHT PIN REMOVER Used for driving out differential pinion shaft lock pin.
Fig 10 498247001 MAGNET BASE
  • Used for measuring backlash between side gear and pinion, and hypoid gear.
  • Used with DIAL GAUGE (498247100).
Fig 11 498247100 DIAL GAUGE
  • Used for measuring backlash between side gear and pinion, and hypoid gear.
  • Used with MAGNET BASE (498247001).
Fig 12 398507704 BLOCK
  • Used for adjusting pinion height and preload.
  • For T-type and VA1 -type
Fig 13 398177700 INSTALLER
  • Used for installing rear bearing cone.
  • For T-type and VA2-type
Fig 14 398457700 ATTACHMENT
  • Used for removal of side bearing retainer.
  • For T-type
Fig 15 398477703 DRIFT 2
  • Used for press-fitting bearing race (rear) of differential carrier.
  • For T-type and VA2-type
Fig 16 398437700 DRIFT
  • Used for installing side oil seal.
  • For T-type and VA2-type
Fig 17 398507702 DUMMY SHAFT
  • Used for adjusting pinion height and preload.
  • For T-type
Fig 18 398507703 DUMMY COLLAR
  • Used for adjusting pinion height and preload.
  • For T-type
Fig 19 398517700 REPLACER
  • Used for removing rear bearing cone.
  • For T-type and VA2-type
Fig 20 398487700 DRIFT
  • Used for press-fitting side bearing cone.
  • For T-type and VA2-type
Fig 21 398507701 DIFFERENTIAL CARRIER GAUGE
  • Used for adjusting pinion height.
  • For T-type
Fig 22 398527700 PULLER ASSY
  • Used for removing front oil seal.
  • Used for removing side bearing cup. (T-type)
Fig 23 28099PA090 OIL SEAL PROTECTOR
  • Used for installing the rear drive shaft to rear differential.
  • For oil seal protection
Fig 24 28099PA100 DRIVE SHAFT REMOVER
  • Used for removing rear drive shaft from rear differential.
  • For T-type
Fig 25 399703600 PULLER ASSY Used for removing companion flange.
Fig 26 899874100 INSTALLER Used for installing companion flange.
Fig 27 498077000 REMOVER
  • Used for removing side bearing cone from differential.
  • For VA2-type
Fig 28 899864100 REMOVER Used for removing differential side bearing.
Fig 29 499277200 INSTALLER
  • Used for installing front bearing cone.
  • For VA2-type
Fig 30 18758AA000 PULLER
  • Used for removing side bearing cup.
  • For VA2-type
Fig 31 18759AA000 PULLER ASSY
  • Used for removing differential from side bearing cone.
  • For T-type
Fig 32 18678AA000 (Newly adopted tool) DUMMY SHAFT
  • Used for adjusting pinion height and preload.
  • For VA2-type
Fig 33 18831AA010 (Newly adopted tool) DIFFERENTIAL CARRIER GAUGE
  • Used for adjusting pinion height.
  • For VA2-type
Fig 34 18630AA010 (Newly adopted tool) WRENCH ASSY
  • Used for removing and installing side oil seal holder.
  • For VA2-type
NOTE: Also available for VA1-type.
Fig 35 498175500 INSTALLER
  • Used for installing rear bearing cone.
  • For VA1-type
Fig 36 499785500 WRENCH ASSY
  • Used for removing and installing side oil seal holder.
  • For VA1-type
Fig 37 498447100 INSTALLER
  • Used for installing oil seal.
  • For VA1-type and T-type
Fig 38 399520105 SEAT
  • Used for removing side bearing cone.
  • Used with PULLER SET (899524100).
  • For VA-type
Fig 39 498485400 DRIFT
  • Used for installing side bearing cone.
  • For VA1-type
Fig 40 498505501 DIFFERENTIAL CARRIER GAUGE
  • Used for adjusting pinion height.
  • For VA1-type
Fig 41 498447110 DRIFT
  • Used for press-fitting the bearing race (front) of differential carrier.
  • For VA1-type
Fig 42 498447150 DUMMY SHAFT
  • Used for adjusting pinion height and preload.
  • For VA1-type
Fig 43 899524100 PULLER SET Used for removing side bearing corn of differential.
  1. Puller
  2. Cap
Fig 44 498515500 REPLACER
  • Used for removing rear bearing cone.
  • For VA1-type
Fig 45 32285AA000 DUMMY COLLAR
  • Used for adjusting pinion height and preload.
  • For VA1-type
Fig 46 499705404 SEAT
  • Used for removing side bearing race.
  • Used with PULLER ASSY (499705401).
  • For VA1-type
Fig 47 499705401 PULLER ASSY
  • Used for removing side bearing race.
  • Used with SEAT (499705404).
  • For VA-type
Fig 1: Identifying Special Tool ST-398477701
G03832415Courtesy of SUBARU OF AMERICA, INC.
Fig 2: Identifying Special Tool ST-398477702
G03832416Courtesy of SUBARU OF AMERICA, INC.
Fig 3: Identifying Special Tool ST-398217700
G03832417Courtesy of SUBARU OF AMERICA, INC.
Fig 4: Identifying Special Tool ST-498447120
G03832418Courtesy of SUBARU OF AMERICA, INC.
Fig 5: Identifying Special Tool ST-498427200
G03832419Courtesy of SUBARU OF AMERICA, INC.
Fig 6: Identifying Special Tool ST-398467700
G03832420Courtesy of SUBARU OF AMERICA, INC.
Fig 7: Identifying Special Tool ST-399780104
G03832421Courtesy of SUBARU OF AMERICA, INC.
Fig 8: Identifying Special Tool ST-899580100
G03832422Courtesy of SUBARU OF AMERICA, INC.
Fig 9: Identifying Special Tool ST-899904100
G03832423Courtesy of SUBARU OF AMERICA, INC.

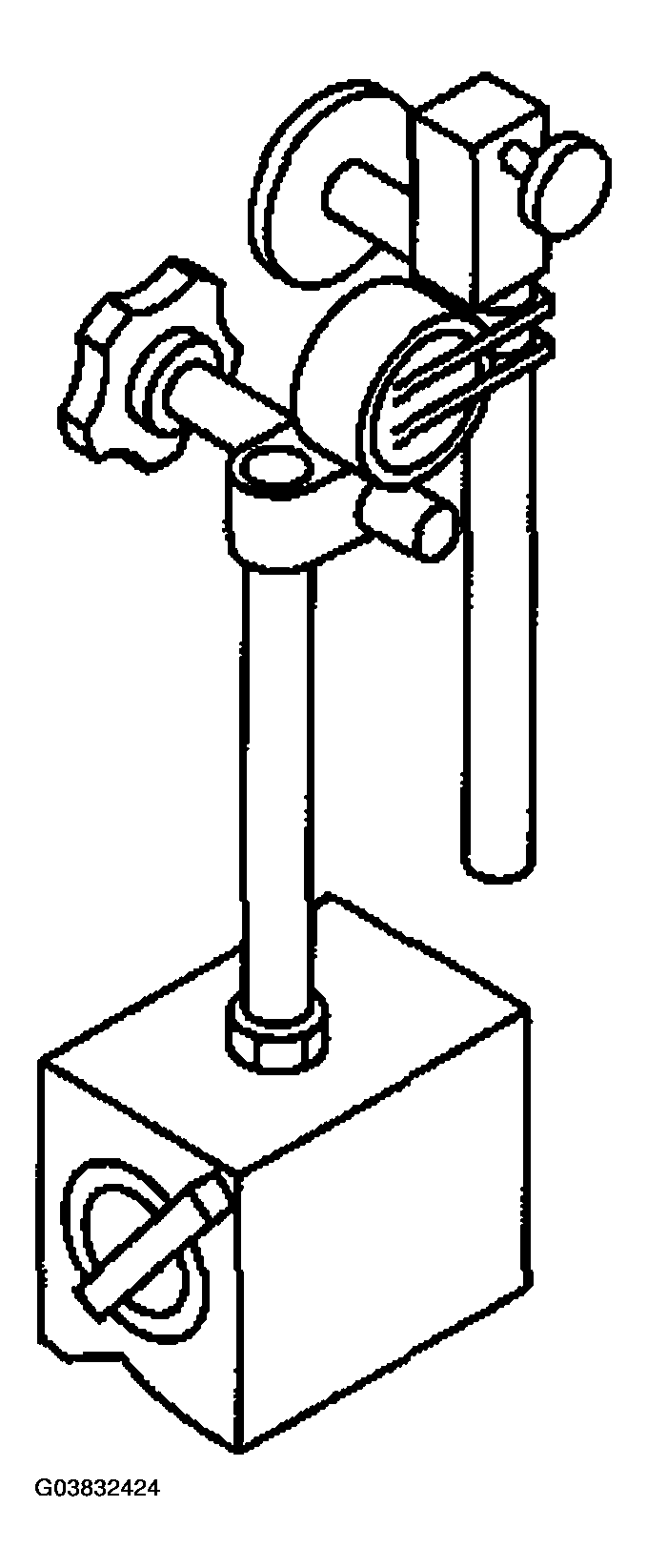

Fig 10: Identifying Special Tool ST-498247001
G03832424Courtesy of SUBARU OF AMERICA, INC.

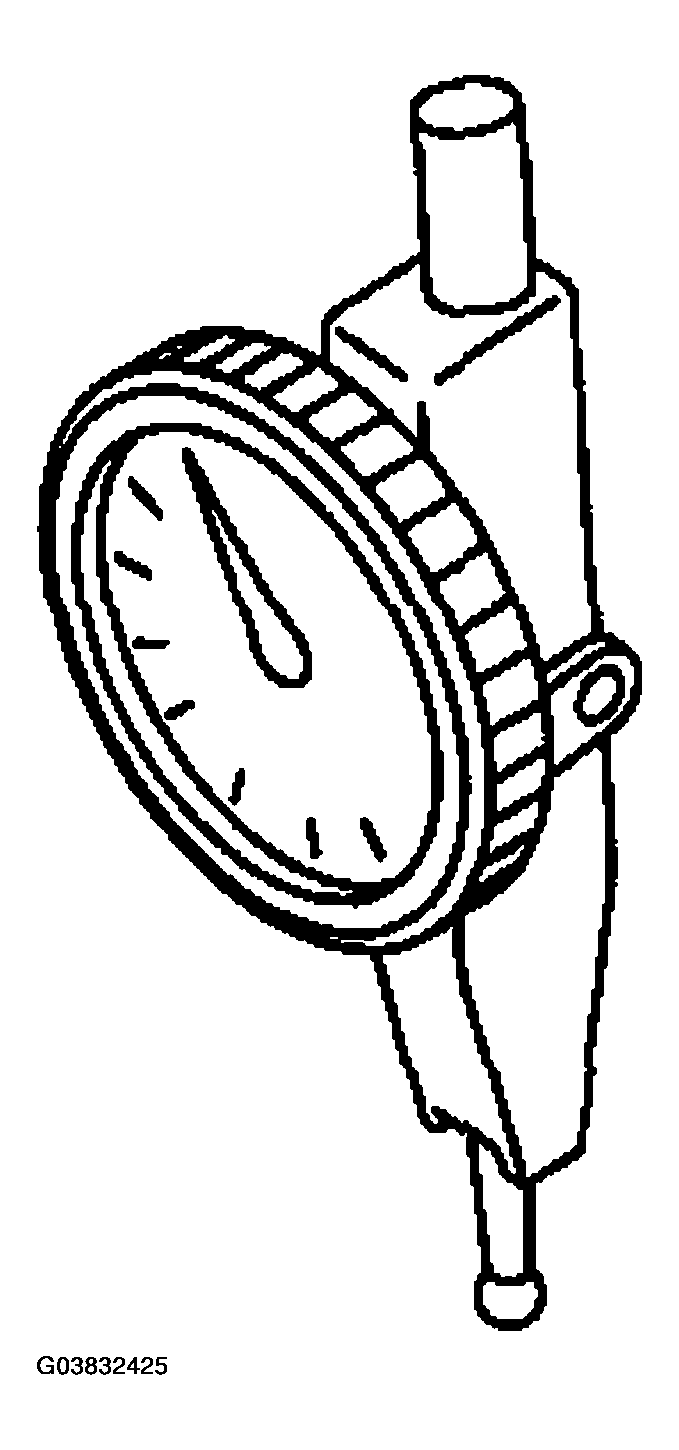

Fig 11: Identifying Special Tool ST-498247100
G03832425Courtesy of SUBARU OF AMERICA, INC.
Fig 12: Identifying Special Tool ST-398507704
G03832426Courtesy of SUBARU OF AMERICA, INC.
Fig 13: Identifying Special Tool ST-398177700
G03832427Courtesy of SUBARU OF AMERICA, INC.
Fig 14: Identifying Special Tool ST-398457700
G03832428Courtesy of SUBARU OF AMERICA, INC.
Fig 15: Identifying Special Tool ST-398477703
G03832429Courtesy of SUBARU OF AMERICA, INC.

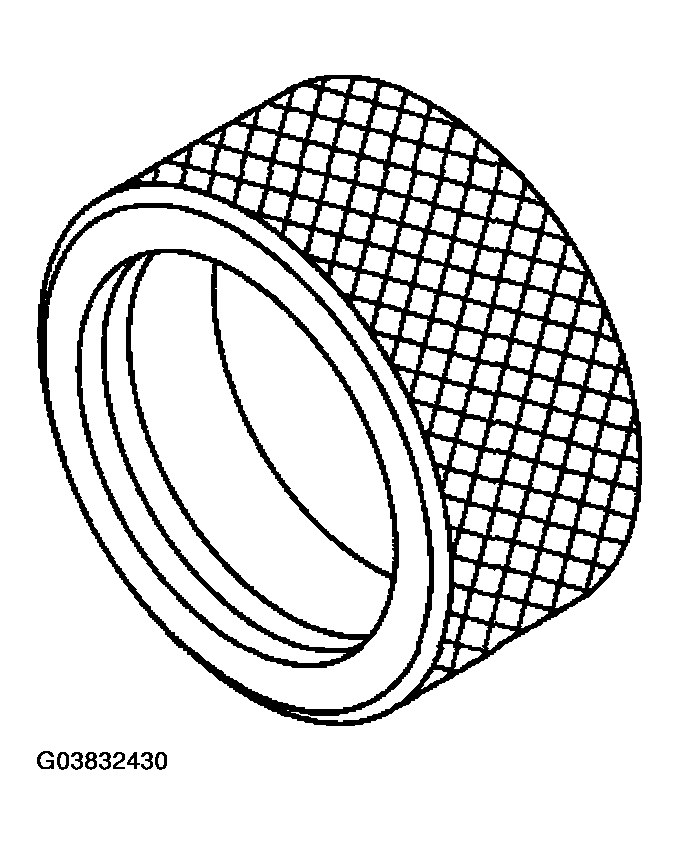

Fig 16: Identifying Special Tool ST-398437700
G03832430Courtesy of SUBARU OF AMERICA, INC.
Fig 17: Identifying Special Tool ST-398507702
G03832431Courtesy of SUBARU OF AMERICA, INC.
Fig 18: Identifying Special Tool ST-398507703
G03832432Courtesy of SUBARU OF AMERICA, INC.
Fig 19: Identifying Special Tool ST-398517700
G03832433Courtesy of SUBARU OF AMERICA, INC.
Fig 20: Identifying Special Tool ST-398487700
G03832434Courtesy of SUBARU OF AMERICA, INC.
Fig 21: Identifying Special Tool ST-398507701
G03832435Courtesy of SUBARU OF AMERICA, INC.
Fig 22: Identifying Special Tool ST-398527700
G03832436Courtesy of SUBARU OF AMERICA, INC.
Fig 23: Identifying Special Tool ST-28099PA090
G03832437Courtesy of SUBARU OF AMERICA, INC.
Fig 24: Identifying Special Tool ST28099PA100
G03832438Courtesy of SUBARU OF AMERICA, INC.
Fig 25: Identifying Special Tool ST-399703600
G03832439Courtesy of SUBARU OF AMERICA, INC.

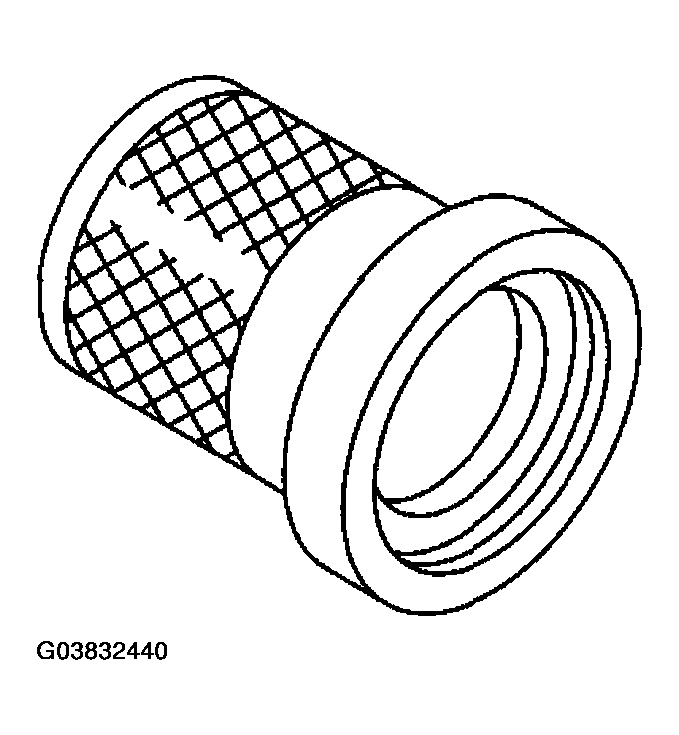

Fig 26: Identifying Special Tool ST-899874100
G03832440Courtesy of SUBARU OF AMERICA, INC.
Fig 27: Identifying Special Tool ST-498077000
G03832441Courtesy of SUBARU OF AMERICA, INC.
Fig 28: Identifying Special Tool ST-899864100
G03832442Courtesy of SUBARU OF AMERICA, INC.
Fig 29: Identifying Special Tool ST-499277200
G03832443Courtesy of SUBARU OF AMERICA, INC.
Fig 30: Identifying Special Tool ST18758AA000
G03832444Courtesy of SUBARU OF AMERICA, INC.
Fig 31: Identifying Special Tool ST18759AA000
G03832445Courtesy of SUBARU OF AMERICA, INC.
Fig 32: Identifying Special Tool ST18678AA000
G03832446Courtesy of SUBARU OF AMERICA, INC.
Fig 33: Identifying Special Tool ST18831AA010
G03832447Courtesy of SUBARU OF AMERICA, INC.
Fig 34: Identifying Special Tool ST-18630AA010
G03832448Courtesy of SUBARU OF AMERICA, INC.
Fig 35: Identifying Special Tool ST-498175500
G03832449Courtesy of SUBARU OF AMERICA, INC.
Fig 36: Identifying Special Tool ST-499785500
G03832450Courtesy of SUBARU OF AMERICA, INC.
Fig 37: Identifying Special Tool ST-498447100
G03832451Courtesy of SUBARU OF AMERICA, INC.
Fig 38: Identifying Special Tool ST-399520105
G03832452Courtesy of SUBARU OF AMERICA, INC.
Fig 39: Identifying Special Tool ST-498485400
G03832453Courtesy of SUBARU OF AMERICA, INC.
Fig 40: Identifying Special Tool ST-498505501
G03832454Courtesy of SUBARU OF AMERICA, INC.
Fig 41: Identifying Special Tool ST-498447110
G03832455Courtesy of SUBARU OF AMERICA, INC.
Fig 42: Identifying Special Tool ST-498447150
G03832456Courtesy of SUBARU OF AMERICA, INC.
Fig 43: Identifying Special Tool ST-899524100
G03832457Courtesy of SUBARU OF AMERICA, INC.
Fig 44: Identifying Special Tool ST-498515500
G03832458Courtesy of SUBARU OF AMERICA, INC.
Fig 45: Identifying Special Tool ST-32285AA000
G03832459Courtesy of SUBARU OF AMERICA, INC.
Fig 46: Identifying Special Tool ST-499705404
G03832460Courtesy of SUBARU OF AMERICA, INC.
Fig 47: Identifying Special Tool ST-499705401
G03832461Courtesy of SUBARU OF AMERICA, INC.
