Section 54 (Anti-Lock Brake Control System - Vehicle Dynamics Control (VDC) (Diagnostics)): Electrical Component Location: Location

WARNING: This page is about a different car, the 2006 Subaru Outback, 2006 Subaru Legacy, and 2006 Saab 9-2X. However, it is still accessible from the selected car via links, so may be relevant.

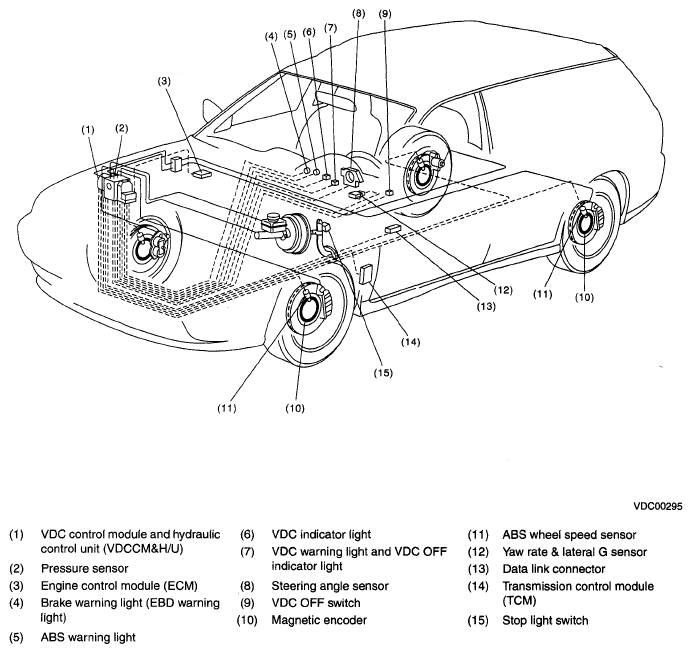

Fig 1: Identifying Vehicle Dynamics Control Electrical Component Location (1 Of 2)
G05020288

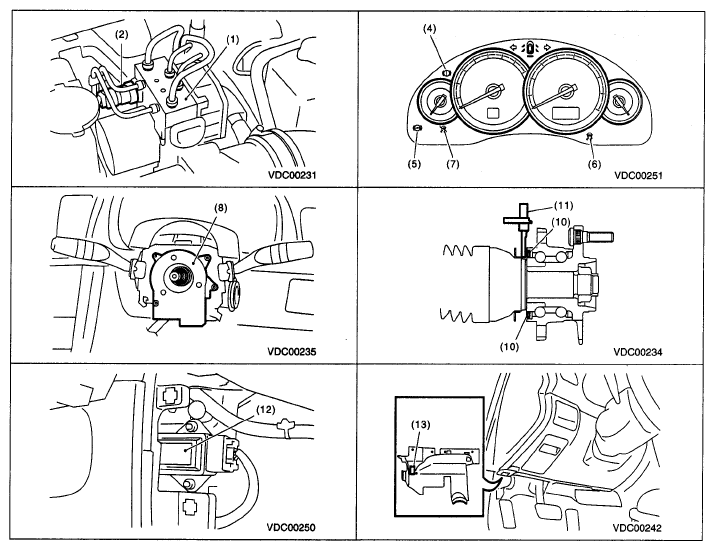

Fig 2: Identifying Vehicle Dynamics Control Electrical Component Location (2 Of 2)
G05020289
