Rear Gate Latch Assembly: Removal

WARNING: This page is about a different car, the 2006 Subaru Outback and 2006 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the rear gate trim. < Ref. to REMOVAL , Rear Gate Trim. >
  3. Remove the two screws.
    Fig 1: Locating Rear Gate Latch Assembly Screws
    G05022812
  4. Disconnect connectors and cables of the rear gate handle.

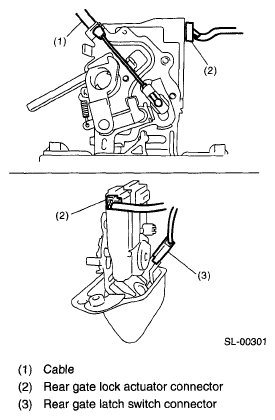

    Fig 2: Identifying Rear Gate Lock Actuator Connector And Rear Gate Latch Switch Connector
    G05022813
  5. Remove the rear gate latch assembly.
