Immobilizer Antenna: Removal

WARNING: This page is about a different car, the 2006 Subaru Outback and 2006 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the screws, and detach the upper column cover and lower column cover.
    Fig 1: Locating Upper Column Cover Screws
    G05022834
  3. Remove the instrument panel lower cover. < Ref. to REMOVAL , Instrument Panel Lower Cover. >
  4. Disconnect the immobilizer antenna connector (A) and ignition switch lighting connector (B).
  5. Loosen the screw and release the lock (D) at opposite side using flat-tip screwdriver (1), and then detach the immobilizer antenna (C).

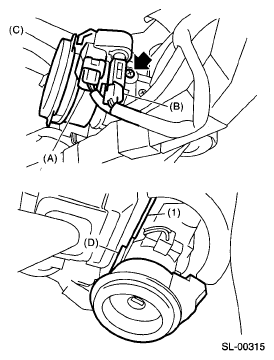

    Fig 2: Locating Immobilizer Antenna Screws
    G05022835
    CAUTION: Do not apply excessive force to remove the immobilizer antenna and lock. Otherwise they may be broken because those parts are the products made of a plastic.
