Section 32 (Automatic Transmission (Diagnostics) 4AT): Electrical Component Location: Location: Sensor

WARNING: This page is about a different car, the 2006 Subaru Outback and 2006 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

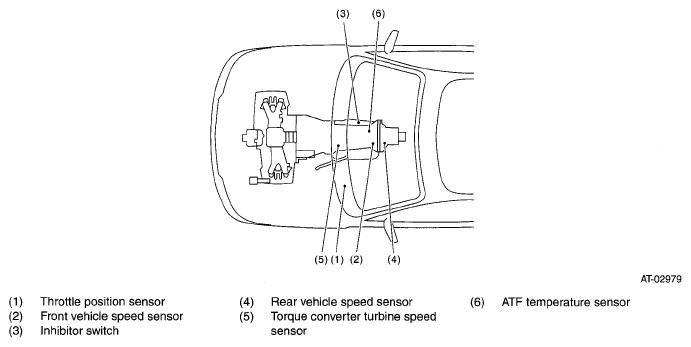

Fig 1: Identifying Electrical Components Location - Sensor (1 Of 2)
G05019761

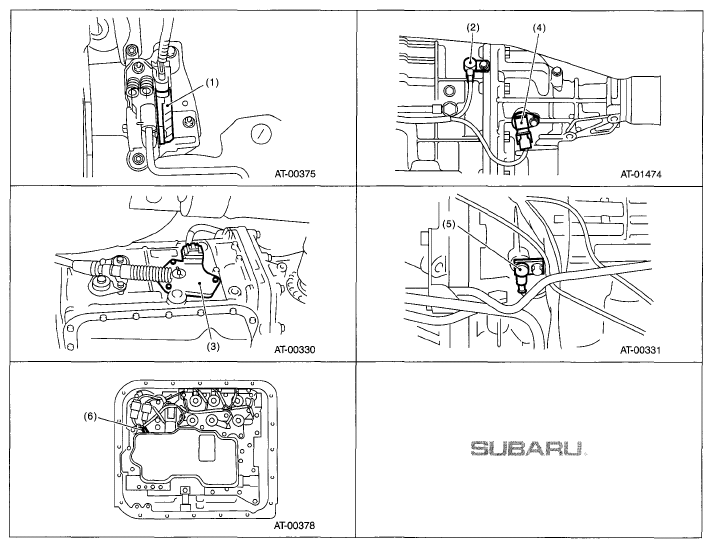

Fig 2: Identifying Electrical Components Location - Sensor (2 Of 2)
G05019762
