Section 24 (Instrumentation/Driver Information)
>>
Combination Meter System
>>
Inspection
>>
List Of Self-Diagnosis Mode Operation
List Of Self-Diagnosis Mode Operation
WARNING:
This page is about a different car, the 2006 Subaru Outback and 2006 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

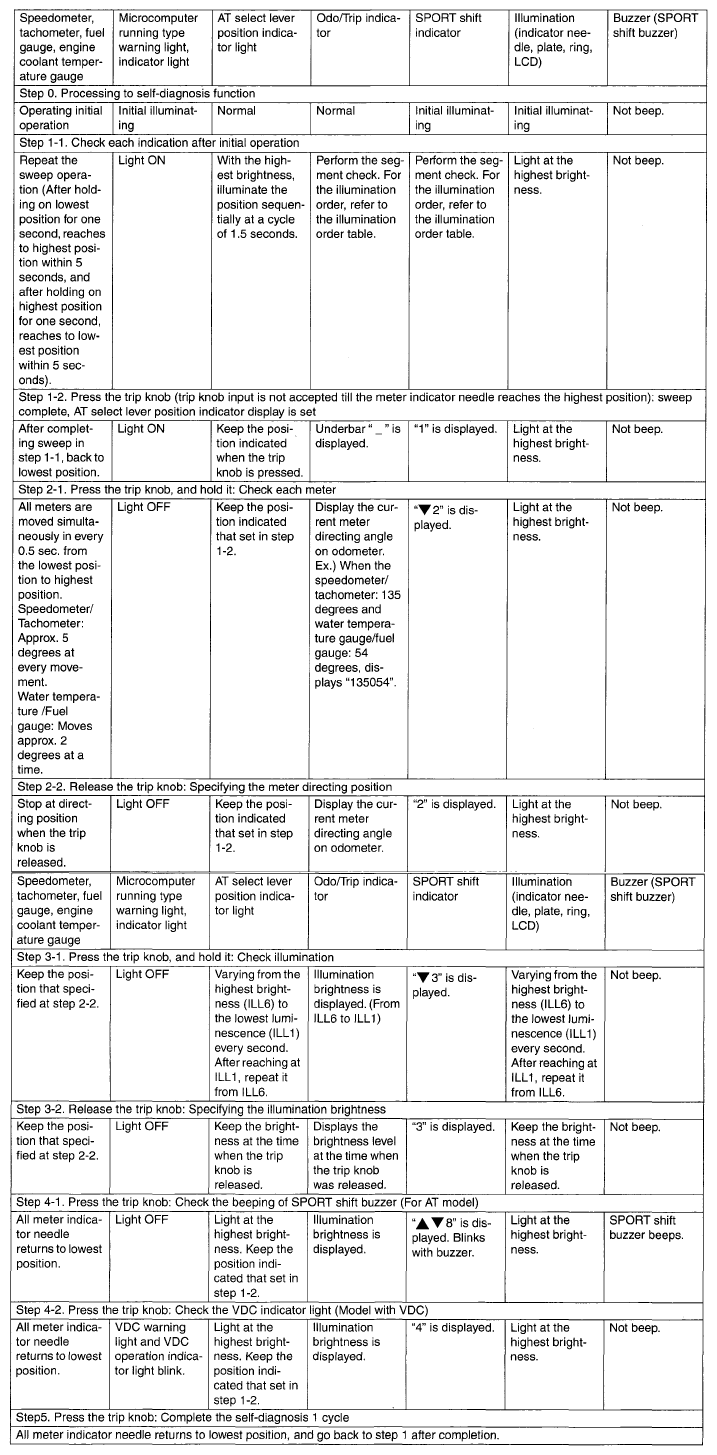

Fig 1: Self-Diagnosis Mode Operation List
Illuminating order table

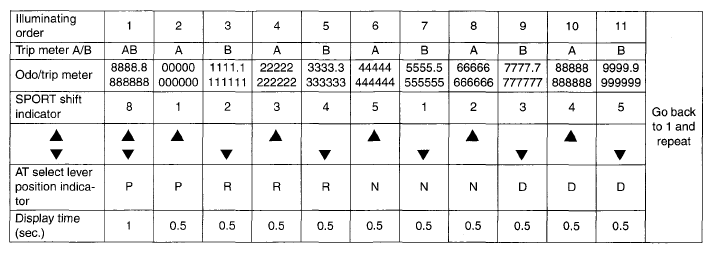

Fig 2: Illuminating Order Chart
