SPECIAL TOOL CHART

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	1B021XU0	SUBARU SELECT MONITOR III KIT	Used for troubleshooting for electrical system.

TEST HARNESS H

SPECIAL TOOL CHART

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	98299FA030	TEST HARNESS H	Used when measuring voltage and resistance of front sub sensor and satellite safing sensor.

Fig 1: Test Harness H - Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

TEST HARNESS N

SPECIAL TOOL CHART

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	98299SA000	TEST HARNESS N	Used when measuring voltage and resistance of driver's airbag module and seat belt pretensioner.

Fig 2: Test Harness N - Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

TEST HARNESS P

SPECIAL TOOL CHART

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	98299SA020	TEST HARNESS P	Used when measuring voltage and resistance of driver's airbag module harness.

Fig 3: Test Harness P - Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

TEST HARNESS Q

SPECIAL TOOL CHART

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	98299SA040	TEST HARNESS Q	Used when measuring voltage and resistance of driver's airbag module.

Fig 4: Test Harness Q - Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

TEST HARNESS AG

SPECIAL TOOL CHART

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	98299AG070	TEST HARNESS AG	Used when measuring voltage and resistance of airbag control module.

Fig 5: Airbag System - Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

Fig 6: Identifying Airbag System Connectors

Courtesy of SUBARU OF AMERICA, INC.

TEST HARNESS AJ

SPECIAL TOOL CHART

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	98299FG000	TEST HARNESS AJ	Used when measuring power supply and resistance of side airbag harness.

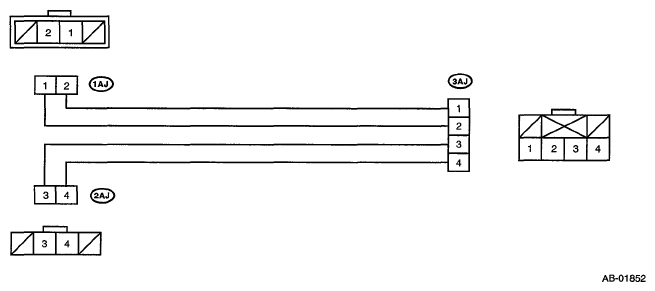

Fig 7: Test Harness AJ - Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

TEST HARNESS V

SPECIAL TOOL CHART

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	98299AG010	TEST HARNESS V	Used when measuring voltage and resistance of side airbag sensor and curtain airbag sensor.

Fig 8: Test Harness V - Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

TEST HARNESS AB

SPECIAL TOOL CHART

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	98299XA000	TEST HARNESS AB	Used when measuring voltage and resistance of occupant detection system.

Fig 9: Test Harness AB - Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

TEST HARNESS AC

SPECIAL TOOL CHART

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	98299XA010	TEST HARNESS AC	Used for diagnosing seat belt tension sensor.

Fig 10: Test Harness AC - Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

TEST HARNESS AD

SPECIAL TOOL CHART

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	98299XA020	TEST HARNESS AD	Used when measuring voltage and resistance of the seat belt tension sensor.

Fig 11: Test Harness AD - Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

TEST HARNESS AE

SPECIAL TOOL CHART

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	98299XA030	TEST HARNESS AE	Used for diagnosing seat belt tension sensor. Used together with the test harness Y.

Fig 12: Test Harness AE - Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

AIRBAG RESISTOR

SPECIAL TOOL CHART

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	98299PA040	AIRBAG RESISTOR	Used in replacement of airbag module for which resistance value is same as airbag module. Two ST are required for diagnosis of two-stage inflator type airbag module.

Fig 13: Airbag Resistor - Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

TEST HARNESS Al

SPECIAL TOOL CHART

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	98299AG090	TEST HARNESS Al	Used when diagnosing the side airbag sensor and curtain airbag sensor. Used together with the test harness V.

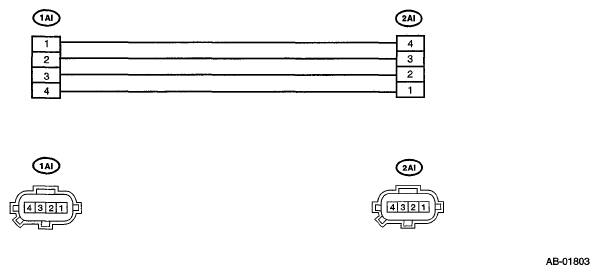

Fig 14: Test Harness Al - Wiring Diagram

G05663339
