Section 17 (Engine Mechanical (H4SO)): V-belt: Inspection

WARNING: This page is about a different car, the 2006 Subaru Outback and 2006 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Replace the belts, if crack, fraying or wear is found.
Remove the V-belt cover and reservoir tank, (with belt tension gauge)
Check the V-belt tension and adjust it if necessary by changing the generator installing position or idler pulley installing position.
Belt tension (with belt tension gauge):

(A)

When installing new parts:

618 - 755 N (63 - 77 kgf, 139 - 170 lb)

At inspection

490 - 640 N (50.0-65.3 kgf, 110.2-143.9 lb)

(B)

When installing new parts:

740-880 N (75.5-89.7 kgf, 166-198 lb)

At inspection

350 - 450N(35.7-45.9 kgf, 78.7-101.2 lb)

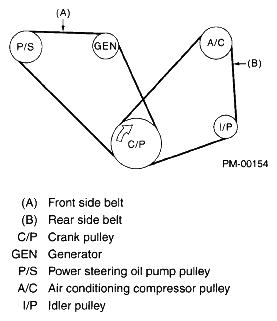

Fig 1: View Of Pulley And Drive Belt
Courtesy of SUBARU OF AMERICA, INC.

Belt tension (without belt tension gauge):

(A)

When installing new parts:

7 - 9 mm (0.276 - 0.354 in)

At inspection

9 - 11 mm (0.354 - 0.433 in)

(B)

When installing new parts:

7.5 - 8.5 mm (0.295 - 0.335 in)

At inspection

9.0 - 10.0 mm (0.354 - 0.394 in)

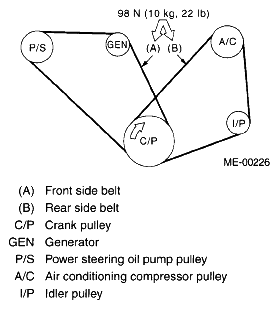

Fig 2: View Of Pulley And Drive Belt
Courtesy of SUBARU OF AMERICA, INC.
