Cylinder Block: Assembly

WARNING: This page is about a different car, the 2006 Subaru Outback and 2006 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

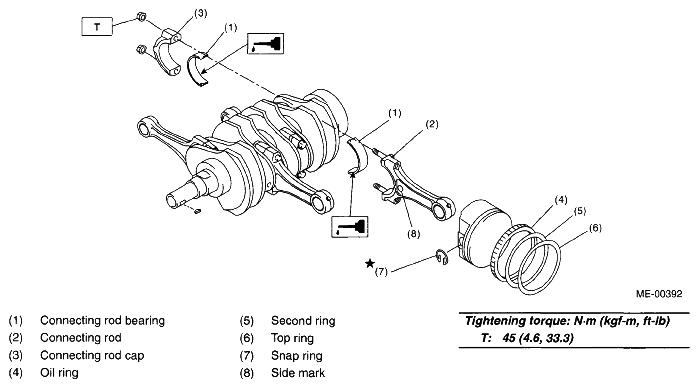

Fig 1: Crankshaft Assembly Replacement Components With Torque Specifications
G05017193Courtesy of SUBARU OF AMERICA, INC.
  1. Apply oil to the surfaces of the connecting rod bearings.
  2. Install the connecting rod bearings on connecting rods and connecting rod caps.
  3. Position each connecting rod with the marking side facing forward, and install it.
  4. Install the connecting rod cap with connecting rod nut.

    Make sure the arrow on connecting rod cap faces toward front during installation.

    CAUTION:
    • Each connecting rod has its own mating cap. Make sure that they are assembled correctly by checking their matching number.
    • When tightening the connecting rod nuts, apply oil on the threads.
  5. Install the expander, lower rail and upper rail in this order by hand. Install the second ring and top ring along with the piston ring expander.
