Side Sill Spoiler: Removal

WARNING: This page is about a different car, the 2006 Subaru Outback and 2006 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Remove the clips (two in the front fender arch, six for side sill spoiler lower area), and remove the side spoiler.

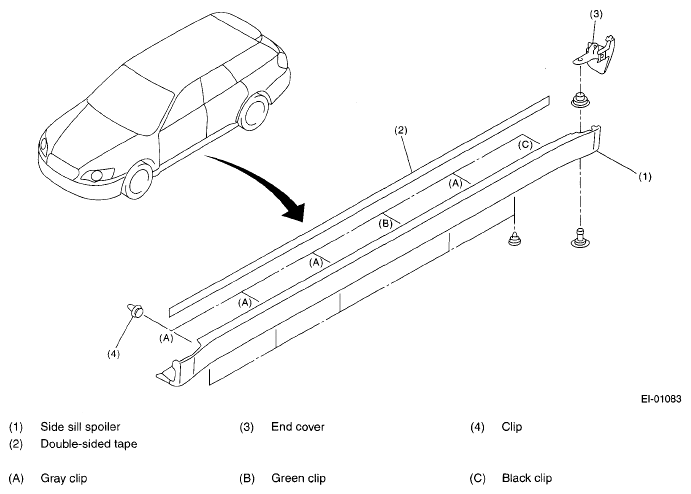

Fig 1: Identifying Side Sill Spoiler Clips
G05022941
NOTE: When peeling the double sided tape, refer to removal procedures for the side protector. < Ref. to REMOVAL , SIDE PROTECTOR. >
